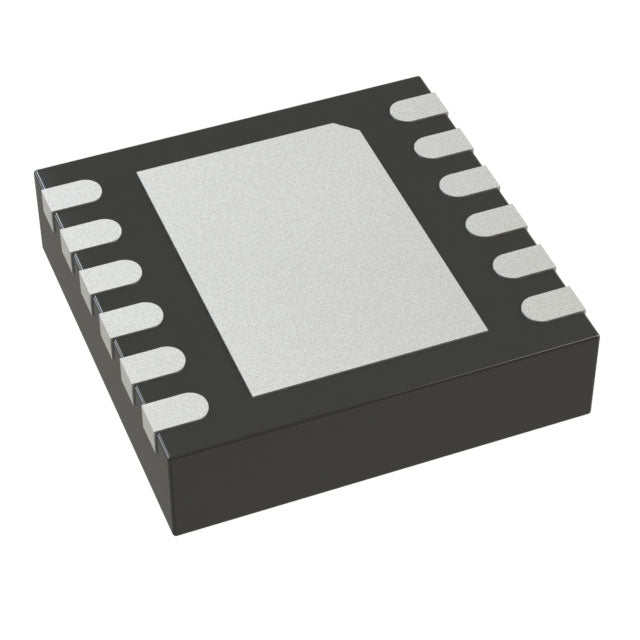

Analog Devices Inc. LTC2472CDD#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.40 | $10.40 |
| 15+ | $2.39 | $35.85 |
| 25+ | $2.34 | $58.50 |
| 50+ | $2.21 | $110.50 |
| 100+ | $1.95 | $195.00 |
| N+ | $0.39 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 833 |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (3x3) |
| ROHS |  |
The Analog Devices LTC2472CDD is a 16-bit analog-to-digital converter (ADC) with a sampling rate of 833 SPS. It features a single input channel and an internal reference, simplifying design. The device communicates via SPI and operates from 0°C to 70°C. Housed in a 12-WFDFN package, it is designed for precision applications including data logging, bridge sensors, and medical monitoring.
- Excellent Accuracy: 16-bit resolution provides high precision for demanding measurement applications.
- Integrated Reference: Simplifies design and reduces external component count, saving cost and space.
- Low Power Operation: Extends battery life in portable and remote sensing applications.
- Compact WFDFN Package: Ideal for space-constrained designs without compromising performance.
High-Precision Data Logging
The LTC2472CDD's 16-bit resolution and 833 SPS sampling rate make it ideal for high-precision data logging in scientific and industrial applications, capturing subtle signal variations accurately.
Bridge Sensor Interfaces
It is well-suited for interfacing with bridge sensors like load cells and pressure sensors, providing the accuracy needed for precise weight and pressure measurements.
Medical Monitoring Devices
In medical devices, this ADC ensures accurate conversion of physiological signals, such as ECG and EEG, contributing to reliable patient monitoring.
Automotive Sensor Systems
The device can be used in automotive applications for monitoring battery voltage, current, and temperature, supporting efficient vehicle management systems.
Portable Test Equipment
With its low power consumption and compact WFDFN package, it is suitable for portable test and measurement tools, offering high accuracy in a small form factor.
- Q: What is the resolution of the LTC2472CDD?
- A: The LTC2472CDD is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It has a sampling rate of 833 SPS.
- Q: How many channels does it have?
- A: It features a single input channel.
- Q: What interface does it use?
- A: It uses an SPI interface.
- Q: What is the reference type?
- A: It has an internal reference.
- Q: What is the package type?
- A: It is available in a 12-WFDFN exposed pad package.
