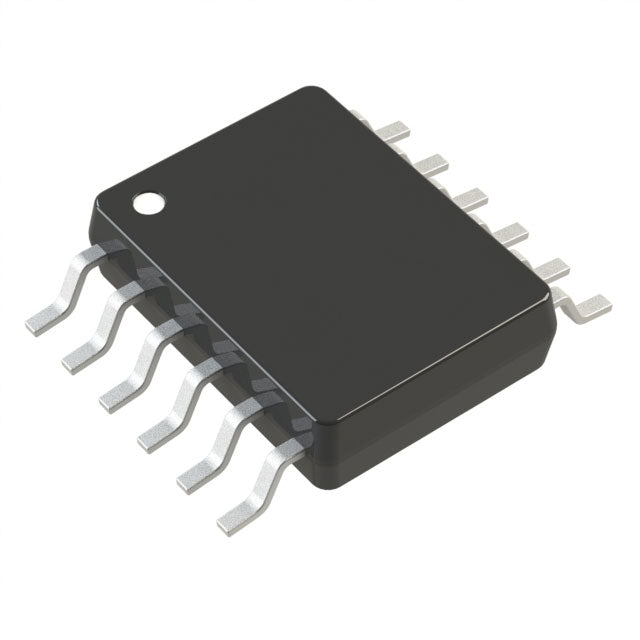

Analog Devices Inc. LTC2473CMS#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.90 | $9.90 |
| 15+ | $2.28 | $34.20 |
| 25+ | $2.23 | $55.75 |
| 50+ | $2.11 | $105.50 |
| 100+ | $1.86 | $186.00 |
| N+ | $0.37 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 833 |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | I2C |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | Selectable Address |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 12-MSOP |
| ROHS |  |
The LTC2473CMS#TRPBF is a 16-bit, single-channel analog-to-digital converter featuring an I2C interface. With a sampling rate of 833 SPS, it is designed for precision measurement of slow-varying signals. The internal voltage reference ensures stable operation without external components. Packaged in a 12-TSSOP (0.118", 3.00mm Width), it operates over 0°C to 70°C. This ADC is well-suited for industrial process control, medical instrumentation, and portable test equipment where accuracy and simplicity are essential.
- Exceptional Accuracy: 16-bit resolution delivers detailed signal representation for critical measurements.
- Integrated Reference: Reduces external part count and simplifies PCB design.
- Standard I2C Interface: Easy integration with most microcontrollers and processors.
- Low Power Operation: Ideal for battery-powered and energy-harvesting applications.
- Space-Saving Package: 12-TSSOP footprint is suitable for compact designs.
Industrial Process Control
The 16-bit resolution allows precise monitoring of process variables like pressure and flow, ensuring tight control in manufacturing environments.
Medical Instrumentation
In patient monitoring devices, the high accuracy and I2C interface enable reliable digitization of biosignals such as ECG and temperature.
Smart Grid Monitoring
For power quality analyzers, the ADC can accurately measure voltage and current waveforms, helping to detect anomalies in the grid.
Portable Test Equipment
The low power consumption and compact TSSOP package make it suitable for handheld multimeters and calibration tools.
Energy Harvesting Systems
With low sampling rates, it is ideal for systems that measure energy from solar or vibration sources, where power efficiency is critical.
- Q: What is the resolution of the LTC2473CMS?
- A: It is a 16-bit ADC, providing high-resolution conversion for precision applications.
- Q: What is the sampling rate?
- A: The sampling rate is 833 SPS, ideal for low-frequency, high-accuracy signals.
- Q: How many channels does it have?
- A: It has a single input channel.
- Q: What interface does it use?
- A: It communicates via the I2C interface.
- Q: What is the operating temperature range?
- A: It operates from 0°C to 70°C.
- Q: What package is available?
- A: It comes in a 12-TSSOP (0.118", 3.00mm Width) package.
