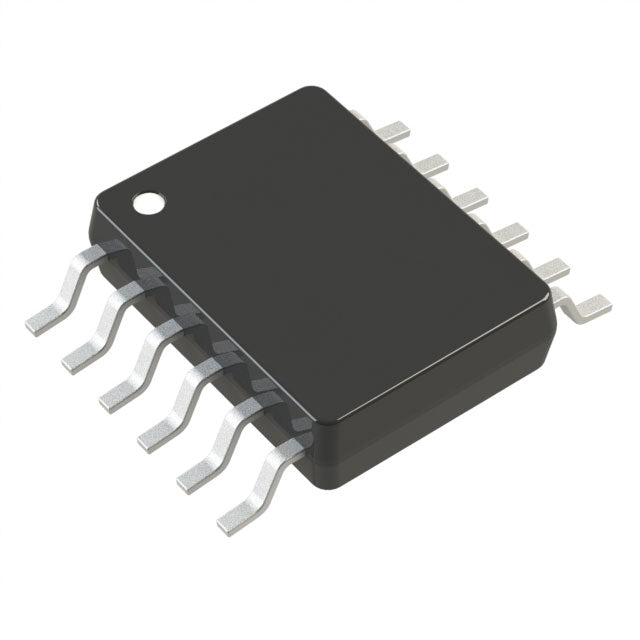

Analog Devices Inc. LTC2473IMS#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.30 | $11.30 |
| 15+ | $2.60 | $39.00 |
| 25+ | $2.55 | $63.75 |
| 50+ | $2.41 | $120.50 |
| 100+ | $2.12 | $212.00 |
| N+ | $0.42 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 833 |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | I2C |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | Selectable Address |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 12-MSOP |
| ROHS |  |
The LTC2473IMS#TRPBF is a high-precision 16-bit analog-to-digital converter (ADC) from Analog Devices, designed for applications requiring accurate signal digitization. It features a single input channel and a sampling rate of 833 SPS, making it well-suited for low-frequency, high-resolution measurement tasks. The device integrates an internal voltage reference and communicates via a standard I2C interface, simplifying system design. Its compact 12-TSSOP package and wide operating temperature range of -40°C to 85°C make it a reliable choice for industrial, medical, and portable instrumentation.
- High Precision: 16-bit resolution ensures detailed and accurate conversion of analog signals, critical for measurement and control systems.
- Integrated Reference: The internal reference reduces external component count, saving board space and simplifying design.
- Simple Digital Interface: I2C communication allows for easy integration with most microcontrollers, reducing firmware complexity.
- Compact Footprint: The 12-TSSOP package is ideal for space-constrained applications without sacrificing performance.
Precision Temperature Sensing
The 16-bit resolution and internal reference of the LTC2473IMS#TRPBF make it excellent for digitizing thermocouple or RTD signals with high accuracy, minimizing external component count.
Industrial Process Control
In industrial automation, this ADC's 833 SPS sampling rate and I2C interface allow for reliable, low-noise conversion of 4-20 mA loop signals or voltage outputs from pressure and flow transmitters.
Portable Instrumentation
Its low pin count 12-TSSOP package and single-channel design are ideal for compact, battery-powered multimeters or data loggers where space and power efficiency are critical.
Medical Monitoring Devices
The high precision of 16 bits supports accurate digitization of biopotential signals like ECG or EEG, where maintaining signal integrity is crucial for diagnostic quality.
Weigh Scale Systems
For load cell and strain gauge interfaces, the LTC2473's internal reference and high resolution help achieve stable, repeatable weight measurements without needing external voltage references.
- Q: What type of ADC is the LTC2473IMS#TRPBF?
- A: It is a 16-bit analog-to-digital converter (ADC) with an internal reference, designed for precision measurement applications.
- Q: What is the resolution of this ADC?
- A: The LTC2473IMS#TRPBF offers 16-bit resolution, providing high precision for demanding sensing applications.
- Q: What is the sampling rate of the LTC2473IMS#TRPBF?
- A: It operates at a sampling rate of 833 SPS (samples per second), suitable for low-speed, high-accuracy data acquisition.
- Q: How many input channels does this device have?
- A: It features a single (1) input channel, making it ideal for dedicated single-sensor monitoring.
- Q: What digital interface does the LTC2473IMS#TRPBF use?
- A: It uses the I2C interface for communication, simplifying connection to microcontrollers and digital systems.
- Q: What is the package type for this ADC?
- A: It is available in a 12-TSSOP (0.118", 3.00mm Width) package, suitable for compact PCB designs.
