Analog Devices Inc. LTC2483CDD#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.05 | $10.05 |
| 15+ | $2.31 | $34.65 |
| 25+ | $2.26 | $56.50 |
| 50+ | $2.13 | $106.50 |
| 100+ | $1.88 | $188.00 |
| N+ | $0.38 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 6.8 |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | I2C |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | Selectable Address |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

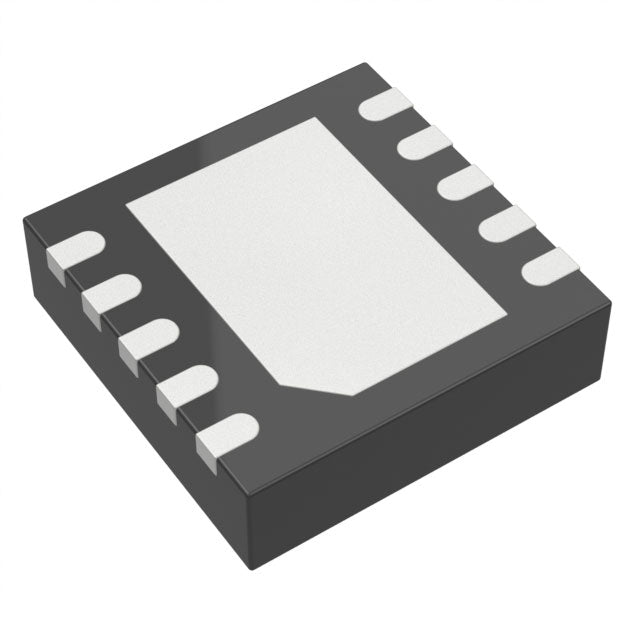

| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
| ROHS |  |
The LTC2483CDD#TRPBF from Analog Devices is a 16-bit Analog-to-Digital Converter (ADC) with a sampling rate of 6.8 SPS. This single-channel device features an I2C interface and requires an external voltage reference for accurate conversions. Packaged in a 10-WFDFN with exposed pad, it operates from 0°C to +70°C. Its high resolution and low noise make it an excellent choice for precision measurement applications, including sensor conditioning, portable instrumentation, and industrial automation.
- High 16-Bit Resolution: Delivers exceptional accuracy for precision measurement applications, ensuring reliable data conversion.
- I2C Interface: Enables easy integration with standard microcontrollers using only two wires, simplifying system design.
- Low Sampling Rate for Precision: The 6.8 SPS rate is optimized for high-accuracy, low-speed measurements, reducing noise.
- External Reference: Allows for ratiometric measurements and the use of high-precision references for improved accuracy.
- Compact WFDFN Package: Saves board space and provides excellent thermal performance.
Precision Sensor Signal Conditioning
The 16-bit resolution and 6.8 SPS sampling rate make the LTC2483CDD#TRPBF ideal for conditioning signals from precision sensors like strain gauges and load cells, ensuring high measurement accuracy.
Portable Instrumentation
With its I2C interface and low power consumption, this ADC is well-suited for portable instruments such as handheld multimeters and environmental monitors.
Industrial Automation
The high resolution allows for precise monitoring of industrial parameters like temperature and pressure, making it suitable for automation and control systems.
Medical Devices
Its accuracy and I2C compatibility make it a good fit for medical devices requiring precise analog-to-digital conversion, such as infusion pumps and diagnostic equipment.
Data Acquisition Systems
The I2C interface simplifies integration into multi-device data acquisition systems, allowing for easy communication with a central controller.
Energy Monitoring
The high resolution is beneficial for energy monitoring applications, such as power quality analyzers and smart meters, where precise voltage and current measurement is required.
- Q: What is the resolution of the LTC2483CDD#TRPBF?
- A: The LTC2483CDD#TRPBF is a 16-bit Analog-to-Digital Converter (ADC).
- Q: What is the sampling rate?
- A: It has a sampling rate of 6.8 SPS.
- Q: How many channels does it have?
- A: It features a single (1) input channel.
- Q: What interface does it use?
- A: It communicates via the I2C interface.
- Q: What is the operating temperature range?
- A: It operates from 0°C to +70°C.
- Q: What package is available?
- A: It comes in a 10-WFDFN Exposed Pad package.
