Analog Devices Inc. LTC2488CDE#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.00 | $13.00 |
| 15+ | $2.99 | $44.85 |
| 25+ | $2.93 | $73.25 |
| 50+ | $2.76 | $138.00 |
| 100+ | $2.44 | $244.00 |
| N+ | $0.49 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 6.9 |
| Number of Inputs | 2, 4 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

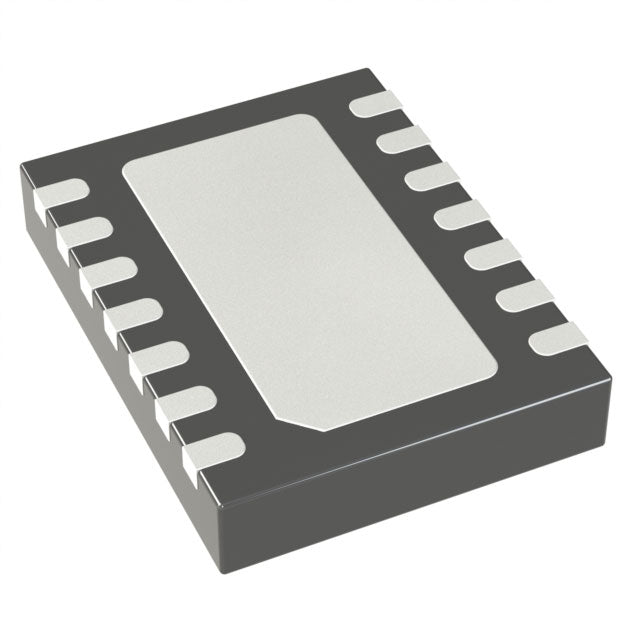

| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-DFN (4x3) |
| ROHS |  |
The LTC2488CDE#TRPBF is a 16-bit analog-to-digital converter from Analog Devices Inc., offering 2 or 4 configurable input channels. It operates at a sampling rate of 6.9 SPS and communicates via the SPI interface. The device uses a MUX-ADC architecture and requires an external voltage reference for precise conversions. Packaged in a compact 14-WFDFN with exposed pad, it operates from 0°C to 70°C. This ADC is designed for precision measurement applications including weigh scales, bridge sensors, and laboratory instrumentation.
- High Precision: 16-bit resolution ensures accurate measurement of small signal variations.
- Configurable Channels: Supports 2 or 4 channels for flexible system design.
- External Reference: Allows use of a high-precision reference for improved accuracy.
- Compact Package: Small WFDFN package saves board space in space-constrained designs.
Precision Weigh Scales
The 16-bit resolution and low sampling rate of 6.9 SPS make the LTC2488CDE#TRPBF ideal for high-accuracy weigh scales and force measurement systems.
Bridge Sensor Interfaces
With external reference support, this ADC can accurately digitize bridge-type sensors like load cells and pressure transducers in industrial applications.
Temperature Measurement
The MUX-ADC architecture allows multiplexing between multiple thermocouples or RTDs, enabling multi-point temperature monitoring in process control.
Laboratory Instruments
Its high precision and small WFDFN package make it suitable for benchtop laboratory instruments like precision multimeters and calibrators.
Energy Harvesting Systems
The low power consumption and 2/4-channel flexibility make it suitable for energy harvesting nodes that require periodic sensor readings.
- Q: What is the resolution of the LTC2488CDE#TRPBF?
- A: It is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The sampling rate is 6.9 SPS (samples per second).
- Q: How many channels does it have?
- A: It has 2 or 4 input channels (configurable).
- Q: What interface does it use?
- A: It uses the SPI interface.
- Q: What is the architecture?
- A: It features a MUX-ADC architecture with an external reference.
- Q: What is the package type?
- A: It comes in a 14-WFDFN Exposed Pad package.
