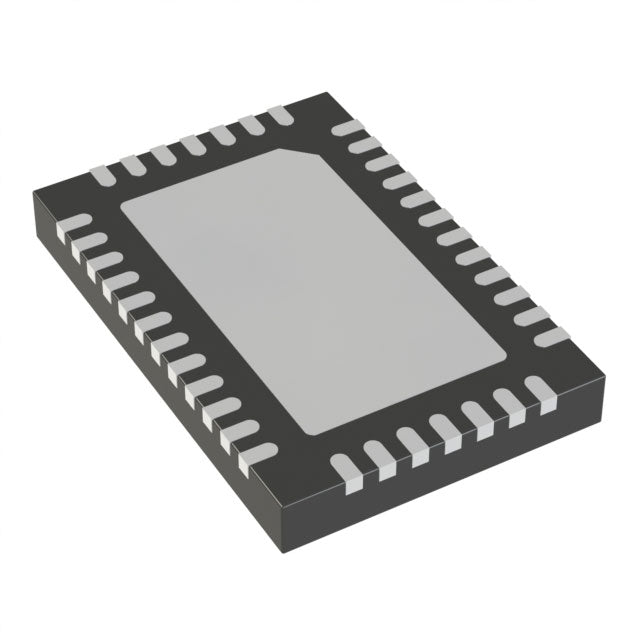

Analog Devices Inc. LTC2496CUHF#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.57 | $8.57 |
| 15+ | $8.30 | $124.50 |
| 25+ | $8.12 | $203.00 |
| 50+ | $7.67 | $383.50 |
| 100+ | $6.77 | $677.00 |
| N+ | $1.35 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 6.9 |
| Number of Inputs | 8, 16 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 38-WFQFN Exposed Pad |
| Supplier Device Package | 38-QFN (5x7) |
| ROHS |  |
The LTC2496CUHF#PBF from Analog Devices is a 16-bit, multichannel analog-to-digital converter (ADC) with a sampling rate of 6.9 SPS. It features a MUX-ADC architecture supporting 8 or 16 input channels. With an SPI interface and external reference, this ADC is designed for high-precision, low-speed measurement applications. Its 38-WFQFN package is suitable for precision instrumentation, industrial monitoring, and medical devices.
- High Accuracy: 16-bit resolution ensures precise measurement of analog signals.
- Multiple Inputs: 8 or 16 channels provide flexibility for multi-sensor systems.
- SPI Interface: Fast and reliable communication with microcontrollers and DSPs.
- Compact Package: 38-WFQFN saves board space in dense designs.
Precision Instrumentation
The 16-bit resolution and SPI interface make it ideal for precision bench instruments and calibration equipment.
Industrial Process Monitoring
Monitor multiple process variables (temperature, pressure, flow) with high accuracy in industrial automation systems.
Medical Devices
Suitable for patient monitoring equipment where multiple vital signs need to be digitized with high precision.
Weighing Systems
The high resolution and low noise performance are well-suited for load cell and strain gauge-based weighing scales.
Data Loggers
With 16 channels, it can log multiple sensor inputs over time, making it useful for environmental and scientific data logging.
- Q: What is the LTC2496CUHF#PBF ADC type?
- A: It is a 16-bit, multichannel analog-to-digital converter with a MUX-ADC architecture.
- Q: What is the resolution of the LTC2496CUHF#PBF?
- A: It provides 16-bit resolution.
- Q: What is the sampling rate of the LTC2496CUHF#PBF?
- A: It has a sampling rate of 6.9 SPS.
- Q: How many channels does the LTC2496CUHF#PBF have?
- A: It supports 8 or 16 input channels.
- Q: What interface does the LTC2496CUHF#PBF use?
- A: It uses an SPI serial interface.
- Q: What is the package type for the LTC2496CUHF#PBF?
- A: It comes in a 38-WFQFN Exposed Pad package.
