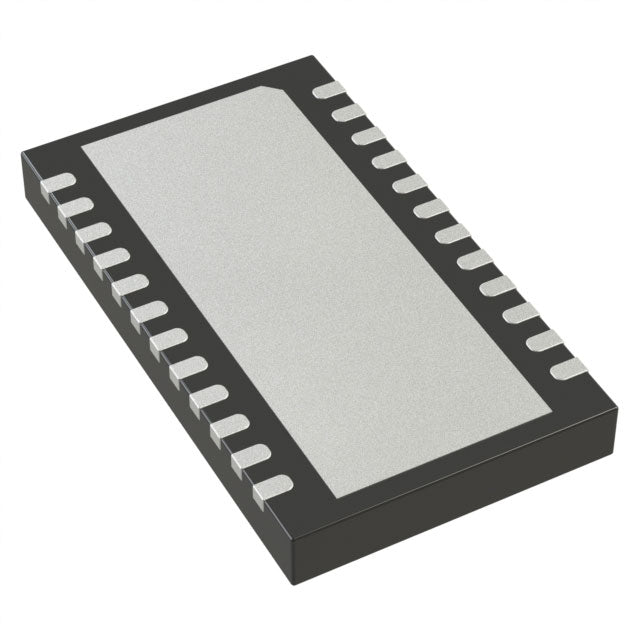

Analog Devices Inc. LTC2500CDKD-32#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $63.80 | $63.80 |
| 15+ | $61.79 | $926.85 |
| 25+ | $60.44 | $1,511.00 |
| 50+ | $57.09 | $2,854.50 |
| 100+ | $50.37 | $5,037.00 |
| N+ | $10.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 32 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | Parallel, SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.375V ~ 2.625V |
| Voltage - Supply, Digital | 1.71V ~ 5.25V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-WFDFN Exposed Pad |
| Supplier Device Package | 24-DFN (7x4) |
| ROHS |  |
The LTC2500CDKD-32#PBF is a 32-bit, 1 MSPS analog-to-digital converter from Analog Devices, engineered for ultra-precise single-channel measurements. It features a flexible digital interface supporting both parallel and SPI modes, making it easy to integrate with modern processors. The device requires an external reference for maximum accuracy and operates over a 0°C to 70°C range. Its 24-pin WFDFN package is ideal for compact precision instruments, offering excellent thermal performance.
- Ultra-High Resolution: 32-bit conversion delivers exceptional dynamic range, ideal for measuring very small signals.
- Dual Interface Flexibility: Parallel and SPI options allow seamless connection to both legacy and modern digital systems.
- High-Speed Precision: 1 MSPS sampling rate enables fast yet accurate data acquisition for dynamic measurements.
- Compact Thermal Package: The WFDFN package with exposed pad ensures efficient heat dissipation in dense designs.
- External Reference Control: Using an external reference allows users to optimize absolute accuracy and temperature drift.
Precision Weigh Scales
The 32-bit resolution at 1 MSPS allows for extremely accurate weight measurements, detecting microgram-level changes in industrial and laboratory scales.
Seismic Monitoring Systems
High resolution and low noise make it suitable for digitizing geophone signals in earthquake early-warning systems, capturing subtle ground movements.
Medical Instrumentation
In EEG or ECG equipment, the 32-bit ADC ensures that tiny bio-potential signals are captured with minimal distortion, aiding accurate diagnosis.
High-Precision Data Loggers
For environmental monitoring, the SPI interface simplifies connection to loggers, while the 1 MSPS rate allows fast sampling of transient events like lightning strikes.
Calibration Equipment
Used in benchtop calibrators, the ADC's high linearity and 32-bit resolution provide a reference-grade digitization path for verifying other instruments.
Industrial Process Control
In chemical plants, precise pressure and temperature transducers can be digitized with high accuracy, improving yield and safety in closed-loop control.
- Q: What is the LTC2500CDKD-32#PBF?
- A: It is a 32-bit, single-channel, precision ADC from Analog Devices with both parallel and SPI interfaces.
- Q: What is the resolution of this ADC?
- A: It offers 32-bit resolution, providing extremely high precision for low-level signal measurement.
- Q: What is the sampling rate?
- A: The sampling rate is 1 MSPS (1 million samples per second), balancing speed with high resolution.
- Q: How many channels does it have?
- A: It has 1 input channel, optimized for single-channel high-accuracy applications.
- Q: What interfaces are supported?
- A: It supports both parallel and SPI interfaces, offering flexibility for various microcontroller and DSP connections.
- Q: What is the package type?
- A: It comes in a 24-WFDFN exposed pad package, which is compact and thermally efficient.
