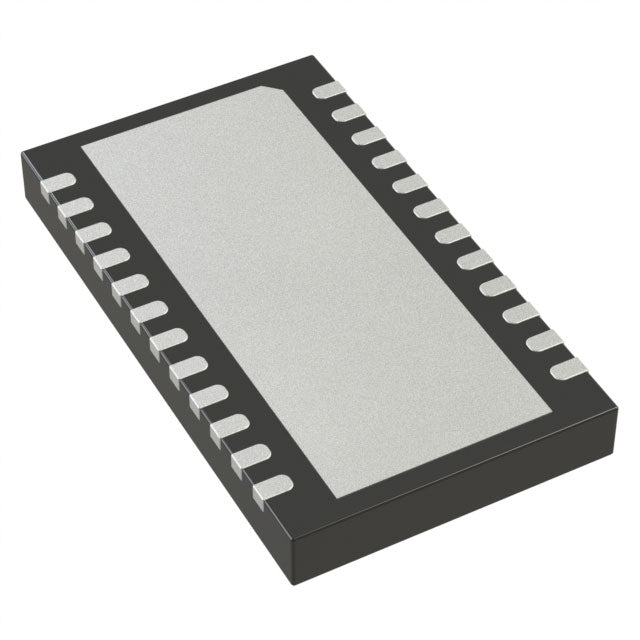

Analog Devices Inc. LTC2500IDKD-32#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $69.53 | $69.53 |
| 15+ | $67.33 | $1,009.95 |
| 25+ | $65.87 | $1,646.75 |
| 50+ | $62.21 | $3,110.50 |
| 100+ | $54.89 | $5,489.00 |
| N+ | $10.98 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 32 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | Parallel, SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.375V ~ 2.625V |
| Voltage - Supply, Digital | 1.71V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-WFDFN Exposed Pad |
| Supplier Device Package | 24-DFN (7x4) |
| ROHS |  |
The LTC2500IDKD-32#PBF is a 32-bit analog-to-digital converter (ADC) from Analog Devices, offering exceptional precision for the most demanding measurement applications. With a sampling rate of 1M SPS and a single input channel, it combines high speed with ultra-high resolution. The device supports both SPI and parallel interfaces for flexible system integration. Packaged in a compact 24-WFDFN, this ADC is perfect for precision metrology, medical research, and scientific instrumentation.
- Ultra-High Resolution (32-bit): Provides the highest level of precision, ideal for metrology and scientific research.
- High Sampling Rate (1M SPS): Balances speed with resolution for real-time precision measurements.
- Flexible Interface: Supports both SPI and parallel for easy integration.
- Compact Package: The 24-WFDFN package is suitable for space-constrained precision instruments.
Precision Metrology
The 32-bit resolution of the LTC2500IDKD-32#PBF makes it ideal for calibration standards and high-precision voltage references.
Seismology and Geophysics
In seismic monitoring, the ADC's extreme resolution captures minute ground vibrations for earthquake early warning systems.
Medical Research Instrumentation
For EEG and ECG research, the 32-bit ADC provides the dynamic range needed to detect subtle neural signals.
Weighing and Force Measurement
In laboratory balances, the high resolution ensures accurate weight measurements down to microgram levels.
Energy and Power Monitoring
The ADC's precision enables accurate measurement of power quality and energy consumption in smart grid applications.
Environmental Monitoring
For gas chromatography and mass spectrometry, the LTC2500 digitizes weak sensor outputs with exceptional fidelity.
- Q: What is the LTC2500IDKD-32#PBF?
- A: It is a 32-bit analog-to-digital converter (ADC) from Analog Devices (formerly Linear Technology).
- Q: What is the resolution?
- A: It offers an industry-leading 32-bit resolution for ultra-precise measurements.
- Q: What is the sampling rate?
- A: The maximum sampling rate is 1M SPS.
- Q: How many channels does it have?
- A: It has a single (1) input channel.
- Q: What interfaces are supported?
- A: It supports both Parallel and SPI interfaces.
- Q: What is the package type?
- A: It is available in a 24-WFDFN exposed pad package.
