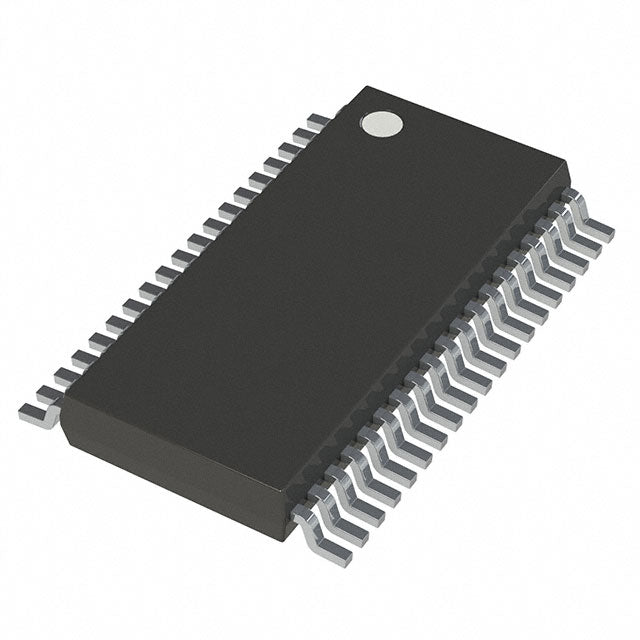

Analog Devices Inc. LTC3305EFE#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $41.25 | $41.25 |
| 15+ | $9.49 | $142.35 |
| 25+ | $9.28 | $232.00 |
| 50+ | $8.76 | $438.00 |
| 100+ | $7.73 | $773.00 |
| N+ | $1.55 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Function | Battery Balancer |
| Battery Chemistry | Lead Acid |
| Number of Cells | 1 ~ 4 |
| Fault Protection | Over Current, Over Temperature |
| Interface | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 38-TFSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 38-TSSOP-EP |
| ROHS |  |
The LTC3305EFE#TRPBF from Analog Devices is a dedicated battery balancer for 1-4 cell lead-acid battery packs. It ensures equal charge distribution across cells, maximizing battery capacity and lifespan. The device includes over current and over temperature protection for safe operation. With a wide junction temperature range of -40°C to 125°C, it is suitable for harsh industrial and automotive environments. The 38-TFSOP exposed pad package allows for efficient heat dissipation.
- Extended Battery Life: Active balancing prevents cell imbalance, significantly prolonging lead-acid battery lifespan.
- Wide Temperature Range: Operates from -40°C to 125°C (TJ), suitable for extreme environments.
- Integrated Protection: Over current and over temperature safeguards ensure reliable operation.
- Simple Design: Supports 1-4 cells, making it easy to integrate into various lead-acid systems.
- Thermally Efficient: Exposed pad package aids in heat management.
Lead-Acid Battery Backup Systems
The LTC3305EFE#TRPBF is ideal for balancing 1-4 cell lead-acid batteries in UPS systems, ensuring equal charge distribution and extending battery life.
Telecom Power Supplies
In telecom base stations, this balancer maintains 48V lead-acid battery banks, preventing cell imbalance and reducing maintenance costs.
Solar Energy Storage
For off-grid solar systems with lead-acid batteries, the device ensures optimal charging and balancing, improving overall system efficiency.
Automotive Start-Stop Batteries
In vehicles with lead-acid start-stop systems, the LTC3305 helps maintain battery health, especially in extreme temperatures up to 125°C.
Marine and RV Power
For boats or RVs with lead-acid house batteries, this balancer ensures even charging, prolonging battery life in demanding conditions.
Industrial Material Handling
In electric pallet jacks or floor scrubbers using lead-acid batteries, the device provides reliable balancing and over temperature protection.
- Q: What is the function of the LTC3305EFE#TRPBF?
- A: It is a battery balancer designed to equalize charge across lead-acid battery cells.
- Q: Which battery chemistry is supported?
- A: It is specifically designed for Lead Acid batteries.
- Q: How many cells can it balance?
- A: It supports 1 to 4 cells.
- Q: What fault protection features are included?
- A: It provides over current and over temperature protection.
- Q: What is the operating temperature range?
- A: The device operates from -40°C to 125°C (TJ).
- Q: What is the package type?
- A: It comes in a 38-TFSOP exposed pad package.
