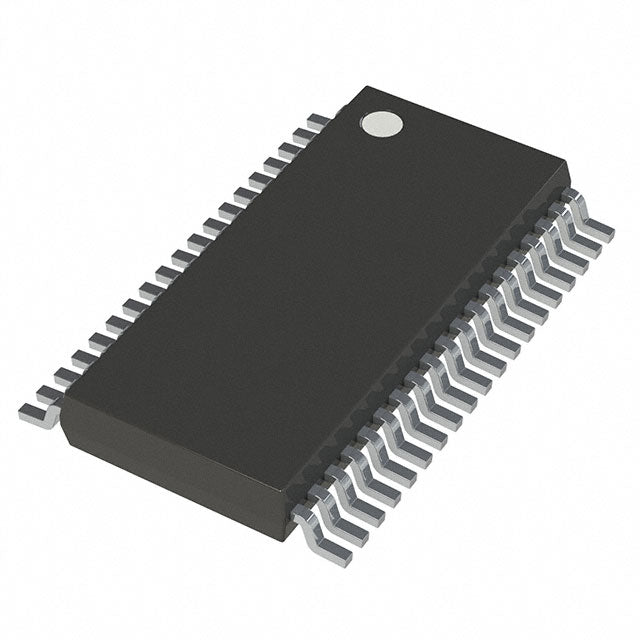

Analog Devices Inc. LTC3305IFE#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $47.45 | $47.45 |
| 15+ | $10.91 | $163.65 |
| 25+ | $10.67 | $266.75 |
| 50+ | $10.08 | $504.00 |
| 100+ | $8.90 | $890.00 |
| N+ | $1.78 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Function | Battery Balancer |
| Battery Chemistry | Lead Acid |
| Number of Cells | 1 ~ 4 |
| Fault Protection | Over Current, Over Temperature |
| Interface | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 38-TFSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 38-TSSOP-EP |
| ROHS |  |
The LTC3305IFE from Analog Devices is a Battery Balancer designed for lead-acid batteries, supporting 1 to 4 cells. It provides over current and over temperature protection, ensuring safe operation. With an extreme temperature range of -40°C to 125°C (TJ), it is ideal for automotive, telecom, and renewable energy applications. The 38-TFSOP package with exposed pad enhances thermal performance in demanding environments.
- Extreme Temperature Range: Operates from -40°C to 125°C, suitable for the harshest conditions.
- Lead-Acid Optimization: Specifically designed for lead-acid battery balancing, maximizing battery life.
- Integrated Protection: Includes over current and over temperature safeguards.
- Thermally Enhanced Package: The exposed pad design improves heat dissipation for reliable operation.
Automotive Battery Management
Balance 12V lead-acid battery stacks in automotive systems, with the LTC3305IFE's -40°C to 125°C range ensuring reliable operation under hood.
Telecom Backup Power
Use in telecom base stations to balance lead-acid battery banks, extending battery life and ensuring backup power availability in harsh outdoor conditions.
Renewable Energy Storage
Integrate into solar and wind energy storage systems to balance lead-acid batteries, improving overall system efficiency and longevity.
Industrial UPS Systems
Deploy in uninterruptible power supplies for industrial facilities, providing active balancing to maintain battery health in demanding environments.
Marine and RV Power Systems
Balance lead-acid house batteries in marine and recreational vehicles, where wide temperature tolerance and robust protection are essential.
- Q: What is the function of the LTC3305IFE?
- A: It is a Battery Balancer designed for lead-acid batteries.
- Q: Which battery chemistry is supported?
- A: It supports Lead Acid batteries.
- Q: How many cells can it balance?
- A: It supports 1 to 4 cells.
- Q: What fault protection features are included?
- A: It includes Over Current and Over Temperature protection.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C (TJ), suitable for extreme environments.
- Q: What package is available?
- A: It comes in a 38-TFSOP (0.173", 4.40mm Width) Exposed Pad package.
