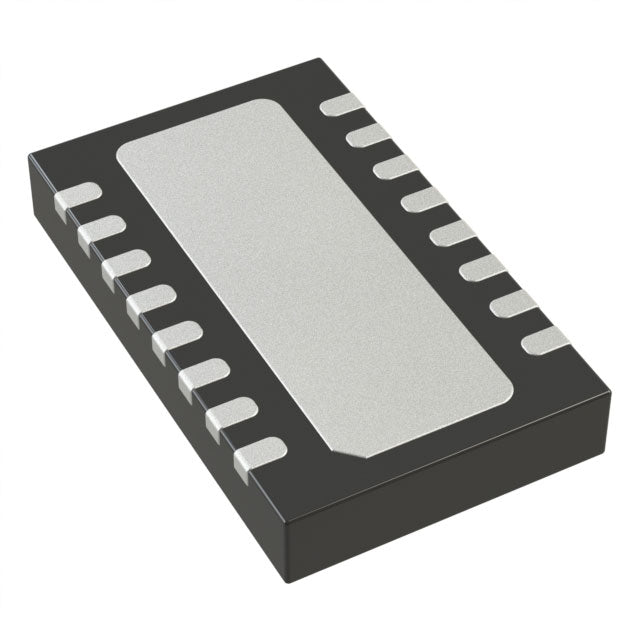

Analog Devices Inc. LTC3550EDHC#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.99 | $7.99 |
| 15+ | $7.74 | $116.10 |
| 25+ | $7.57 | $189.25 |
| 50+ | $7.15 | $357.50 |
| 100+ | $6.31 | $631.00 |
| N+ | $1.26 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current |
| Fault Protection | Over Voltage |
| Charge Current - Max | 950mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 8V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-DFN (5x3) |
| ROHS |  |
The LTC3550EDHC#PBF from Analog Devices Inc. is a compact, USB-compatible battery charger for single-cell Lithium Ion batteries. It provides a charge current up to 950mA and regulates the battery voltage to 4.2V. This charger includes essential Over Voltage protection and is designed to operate across a wide temperature range of -40°C to 85°C. Housed in a space-saving 16-WFDFN package, it is an ideal solution for a variety of portable and handheld devices that require a reliable and efficient charging method.
- USB Power Convenience: Its USB interface allows for easy charging from standard USB ports, simplifying the design of portable devices.
- Wide Operating Range: The -40°C to 85°C temperature range makes it suitable for both commercial and industrial applications.
- Compact Footprint: The 16-WFDFN Exposed Pad package minimizes PCB space, which is critical for miniaturized designs.
- Safety Assurance: Over Voltage protection helps prevent damage to the battery from charging faults.
Portable Electronics
The LTC3550EDHC#PBF is perfect for portable electronics like MP3 players and e-readers, providing a reliable 950mA charge for single-cell Lithium Ion batteries via a standard USB port.
Bluetooth Peripherals
For Bluetooth headsets and speakers, this charger's compact 16-WFDFN package and USB compatibility make it an easy integration for managing battery charging efficiently.
Handheld Instruments
In industrial handheld tools and instruments, the -40°C to 85°C operating range ensures dependable charging performance even in harsh working conditions.
Smart Home Devices
For smart home sensors and controllers that run on single-cell Lithium Ion batteries, this IC provides a safe and straightforward charging solution with its Over Voltage protection.
GPS Trackers
The small footprint and robust feature set of the LTC3550EDHC#PBF make it suitable for portable GPS trackers, ensuring the internal battery is charged correctly and safely.
- Q: What battery chemistry is the LTC3550EDHC#PBF designed for?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells does it support?
- A: It supports a single-cell (1) configuration.
- Q: What is the maximum charge current?
- A: The maximum charge current is 950mA.
- Q: What is the target battery voltage?
- A: The battery voltage is regulated at 4.2V.
- Q: What fault protection features are available?
- A: It includes Over Voltage protection.
- Q: What interface does it use?
- A: It uses a USB interface.
