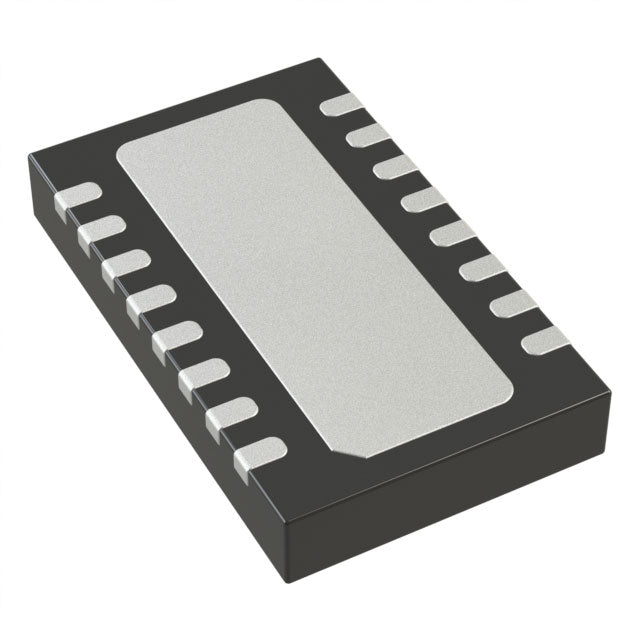

Analog Devices Inc. LTC3552EDHC-1#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $16.48 | $16.48 |
| 15+ | $3.79 | $56.85 |
| 25+ | $3.71 | $92.75 |
| 50+ | $3.50 | $175.00 |
| 100+ | $3.09 | $309.00 |
| N+ | $0.62 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current |
| Fault Protection | - |
| Charge Current - Max | 950mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 8V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-DFN (5x3) |
| ROHS |  |
The Analog Devices LTC3552EDHC-1#PBF is a single-cell Lithium Ion battery charger. It provides a charge current up to 950mA and regulates the battery voltage to 4.2V. Housed in a compact 16-WFDFN package with exposed pad for thermal management, it operates over a wide temperature range of -40°C to 85°C. This charger is designed for portable applications requiring a reliable and straightforward charging solution.
- Reliable Charging: Provides a stable 950mA charge current for single-cell Li-Ion batteries.
- Compact Design: The 16-WFDFN package is ideal for space-constrained portable devices.
- Wide Temperature Range: Operates from -40°C to 85°C, suitable for various environments.
- Thermal Management: Exposed pad design enhances heat dissipation for reliable operation.
Portable Media Players
The LTC3552EDHC-1#PBF's 950mA charge current is well-suited for portable media players, providing a balanced charge rate for single-cell Li-Ion batteries.
Handheld GPS Devices
For handheld GPS units, this charger offers reliable and safe charging with its 4.2V regulation, ensuring long battery life in outdoor applications.
Wireless Headsets
The compact 16-WFDFN package makes it ideal for wireless headsets and earbuds, where space is at a premium and a moderate charge current is sufficient.
Portable Instruments
In portable test and measurement equipment, the LTC3552EDHC-1#PBF provides dependable charging with a wide operating temperature range for field use.
Smart Home Devices
For smart home sensors and controllers, this charger offers a simple, reliable solution for Li-Ion battery management in commercial environments.
- Q: What battery chemistry is the LTC3552EDHC-1#PBF designed for?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells does it support?
- A: It supports a single cell (1) configuration.
- Q: What is the maximum charge current?
- A: The maximum charge current is 950mA.
- Q: What is the battery regulation voltage?
- A: The battery regulation voltage is 4.2V.
- Q: What is the operating temperature range?
- A: The operating temperature range is -40°C to 85°C.
- Q: What is the package type?
- A: It comes in a 16-WFDFN Exposed Pad package.
LTC3552EDHC-1#PBF.pdf
- Q: What battery chemistry is the LTC3552EDHC-1#PBF designed for?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells does it support?
- A: It supports a single cell (1) configuration.
- Q: What is the maximum charge current?
- A: The maximum charge current is 950mA.
- Q: What is the battery regulation voltage?
- A: The battery regulation voltage is 4.2V.
- Q: What is the operating temperature range?
- A: The operating temperature range is -40°C to 85°C.
- Q: What is the package type?
- A: It comes in a 16-WFDFN Exposed Pad package.
