Analog Devices Inc. LTC3552EDHC#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.31 | $8.31 |
| 15+ | $8.05 | $120.75 |
| 25+ | $7.88 | $197.00 |
| 50+ | $7.44 | $372.00 |
| 100+ | $6.56 | $656.00 |
| N+ | $1.31 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current |
| Fault Protection | - |
| Charge Current - Max | 950mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 8V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

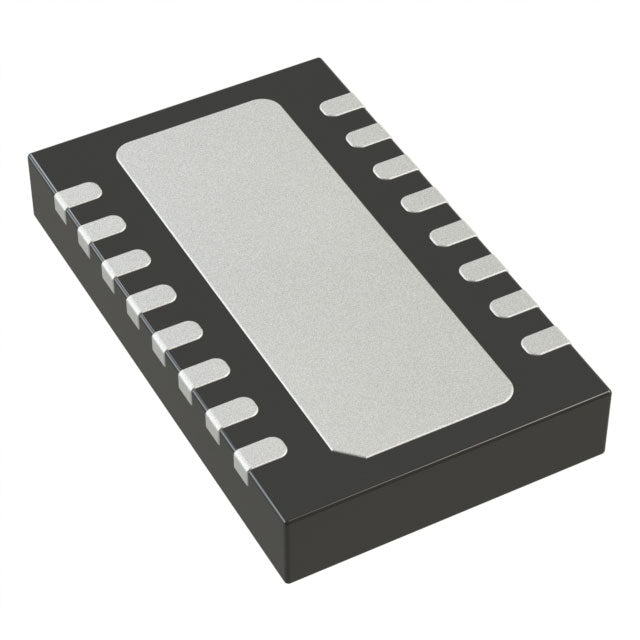

| Package / Case | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-DFN (5x3) |
| ROHS |  |
The LTC3552EDHC#PBF from Analog Devices Inc. is a high-performance battery charger designed for single-cell Lithium Ion batteries. It offers a maximum charge current of 950mA and maintains a precise 4.2V battery voltage. Engineered for versatility, it operates over a wide -40°C to 85°C temperature range. The compact 16-WFDFN Exposed Pad package makes it an optimal solution for a broad spectrum of portable and handheld devices requiring a dependable charging circuit.
- Efficient Power Delivery: Delivers up to 950mA, enabling faster charging cycles for single-cell Lithium Ion batteries.
- Broad Temperature Operation: The -40°C to 85°C range ensures functionality in both cold and hot environments.
- High Accuracy: Tight 4.2V regulation helps maximize battery capacity and lifespan.
- Design Flexibility: The small 16-WFDFN package allows for use in a wide variety of compact electronic devices.
Portable Media Players
The LTC3552EDHC#PBF is an excellent fit for portable media players, offering a reliable 950mA charge for their single-cell Lithium Ion batteries, ensuring long hours of entertainment.
Handheld Barcode Scanners
In logistics and retail, this charger's wide temperature range and compact size make it ideal for rugged handheld barcode scanners used in warehouses.
Smart Wearables
For smartwatches and fitness trackers, the small 16-WFDFN package allows for seamless integration into tight spaces while providing efficient battery charging.
Portable Power Banks
This IC can be used in power bank designs to manage the charging of the internal single-cell Lithium Ion battery, ensuring safe and efficient energy storage.
Security Cameras
For battery-powered security cameras, the LTC3552EDHC#PBF provides dependable charging performance across a range of outdoor temperatures.
- Q: What battery chemistry is the LTC3552EDHC#PBF for?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells does it support?
- A: It supports a single-cell (1) configuration.
- Q: What is the maximum charge current?
- A: The maximum charge current is 950mA.
- Q: What is the battery voltage?
- A: The battery voltage is regulated at 4.2V.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
- Q: What is the package type?
- A: It is available in a 16-WFDFN Exposed Pad package.
