Analog Devices Inc. LTC3552EDHC#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.31 | $8.31 |
| 15+ | $8.05 | $120.75 |
| 25+ | $7.88 | $197.00 |
| 50+ | $7.44 | $372.00 |
| 100+ | $6.56 | $656.00 |
| N+ | $1.31 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current |
| Fault Protection | - |
| Charge Current - Max | 950mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 8V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

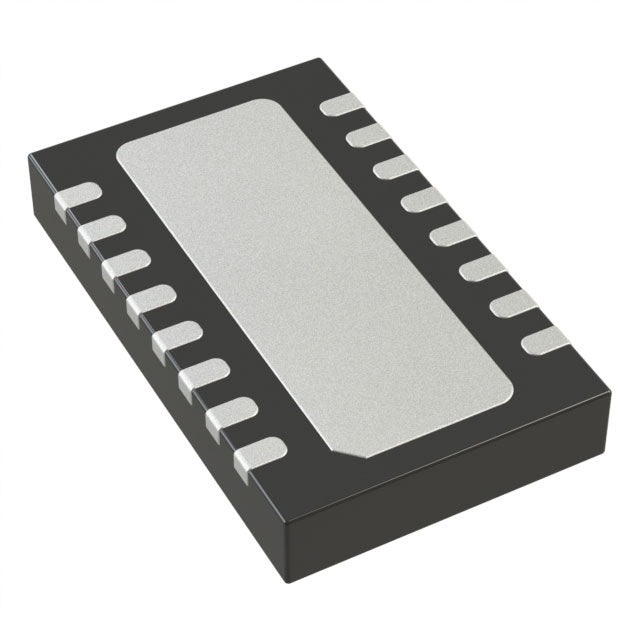

| Package / Case | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-DFN (5x3) |
The LTC3552EDHC#TRPBF is a dedicated single-cell Lithium Ion battery charger from Analog Devices Inc. It delivers a charge current of up to 950mA with a target voltage of 4.2V. This charger is designed for reliable operation over an industrial temperature range of -40°C to 85°C. Its compact 16-WFDFN Exposed Pad package makes it an ideal choice for space-constrained portable electronics, offering a straightforward and efficient charging solution.
- Reliable Charging: Provides a consistent 950mA charge current for efficient and predictable charging of single-cell Lithium Ion batteries.
- Industrial Temperature Tolerance: Operates effectively from -40°C to 85°C, making it suitable for a wide range of applications.
- Precise Voltage Regulation: Maintains a tight 4.2V regulation point to ensure battery safety and longevity.
- Minimal Space Requirement: The 16-WFDFN package is designed for compact, portable devices where board space is at a premium.
Digital Cameras
The LTC3552EDHC#TRPBF is well-suited for digital cameras, providing a steady 950mA charge to single-cell Lithium Ion batteries, ensuring cameras are ready for use quickly.
Portable Gaming Devices
For handheld gaming consoles, this charger's reliable performance and compact size make it an excellent choice for managing battery power in a small form factor.
Wireless Communication Devices
In devices like two-way radios, the wide -40°C to 85°C temperature range ensures the charger functions correctly in various outdoor environments.
Medical Monitoring Equipment
Its robust temperature range and precise 4.2V regulation make it suitable for portable medical monitors that require dependable battery management.
Consumer Appliances
For cordless personal care appliances, this IC offers a simple and efficient charging solution, leveraging its compact package for easy integration.
- Q: What battery chemistry does the LTC3552EDHC#TRPBF support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports a single-cell (1) configuration.
- Q: What is the maximum charge current?
- A: The maximum charge current is 950mA.
- Q: What is the battery voltage regulation point?
- A: The battery voltage is regulated at 4.2V.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
- Q: What package is it available in?
- A: It comes in a 16-WFDFN Exposed Pad package.
LTC3552EDHC#TRPBF.pdf
- Q: What battery chemistry does the LTC3552EDHC#TRPBF support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports a single-cell (1) configuration.
- Q: What is the maximum charge current?
- A: The maximum charge current is 950mA.
- Q: What is the battery voltage regulation point?
- A: The battery voltage is regulated at 4.2V.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
- Q: What package is it available in?
- A: It comes in a 16-WFDFN Exposed Pad package.
