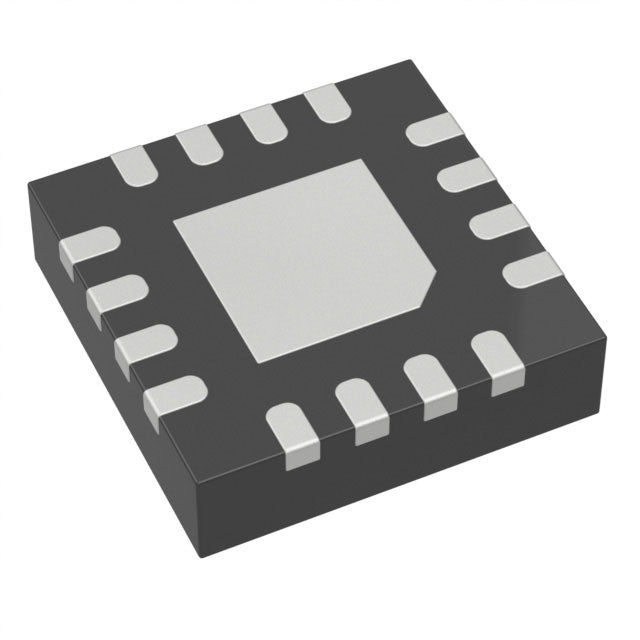

Analog Devices Inc. LTC3559EUD-1#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $16.52 | $16.52 |
| 15+ | $3.66 | $54.90 |
| 25+ | $3.58 | $89.50 |
| 50+ | $3.38 | $169.00 |
| 100+ | $2.99 | $299.00 |
| N+ | $0.60 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | - |
| Charge Current - Max | 950mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 5.5V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
| ROHS |  |
The LTC3559EUD-1#PBF is a compact, USB-compatible battery charger designed for single-cell Lithium Ion/Polymer batteries. It provides a regulated 4.2V charge voltage and supports a maximum charge current of 950mA. The device operates over an ambient temperature range of -40°C to 85°C and is available in a space-saving 16-WFQFN package, making it an excellent choice for portable consumer electronics.
- Fast Charging: Supports up to 950mA charge current, reducing charge time for single-cell Li-Ion batteries.
- USB Compatibility: Integrated USB interface simplifies connection to standard power sources.
- Space-Efficient Design: The 16-WFQFN package is ideal for compact, portable devices.
- Wide Operating Range: Functions reliably across an ambient temperature range of -40°C to 85°C.
USB-Powered Consumer Electronics
Perfect for charging single-cell Li-Ion batteries in devices like Bluetooth speakers and earbuds, leveraging the USB interface and up to 950mA charge current for fast charging from a standard port.
Portable GPS Trackers
Provides a reliable charging solution for GPS trackers, ensuring a full charge of a 4.2V cell within a reasonable timeframe using the high 950mA current capability.
Digital Cameras
Ideal for compact digital cameras that require a dedicated single-cell Li-Polymer battery charger with a small footprint, fitting into the 16-WFQFN package.
Handheld Gaming Consoles
Supports the power needs of portable gaming devices, offering efficient charging from a USB source while maintaining a safe temperature profile from -40°C to 85°C.
Smart Wearables
Enables a compact charging solution for smartwatches and fitness bands, utilizing the tiny package and USB interface for simple integration.
- Q: What battery chemistry is the LTC3559EUD-1#PBF designed for?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many cells can this charger support?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 950mA.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What interface does it use?
- A: It uses a USB interface for power and control.
- Q: What is the operating temperature range?
- A: The ambient temperature range is -40°C to 85°C.
