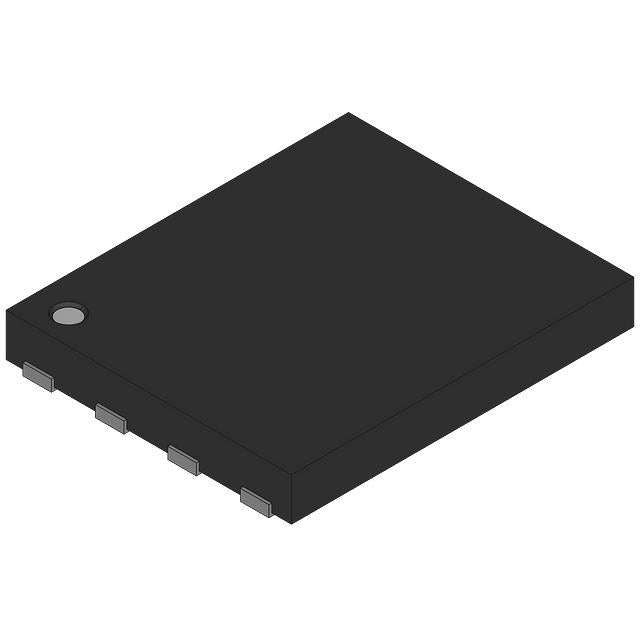

Linear Technology LTC3624EDD-3.3#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.86 | $4.86 |
| 15+ | $4.71 | $70.65 |
| 25+ | $4.61 | $115.25 |
| 50+ | $4.35 | $217.50 |
| 100+ | $3.84 | $384.00 |
| N+ | $0.77 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Linear Technology |
| Product Series | |
| Packaging | Bulk | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 17V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Current - Output | 2A |
| Frequency - Switching | 2.25MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x3) |
| ROHS |  |
The LTC3624EDD-3.3 is a fixed 3.3V output synchronous buck converter from Analog Devices, delivering up to 2A from a 2.7V to 17V input. Its 2.25MHz switching frequency enables the use of very small inductors and capacitors, minimizing solution footprint. The 8-WFDFN exposed pad package provides excellent thermal performance. This converter is ideal for powering 3.3V logic in portable, industrial, and networking applications.
- Fixed 3.3V Output: Simplifies design and reduces external components.
- High-Frequency Operation: 2.25MHz allows tiny, low-profile components.
- Wide Input Range: 2.7V to 17V supports battery and multi-rail systems.
- Efficient Power Delivery: Synchronous rectification ensures high efficiency at 2A.
Microcontroller Power
The fixed 3.3V output at 2A is perfect for powering MCUs, memory, and peripherals in embedded systems from a 5V or 12V rail.
Portable Instruments
With 2.7V minimum input, it can operate from a single Li-Ion cell, providing a stable 3.3V supply for handheld meters and data loggers.
Networking Modules
Its 2.25MHz frequency allows tiny external components, ideal for compact Ethernet switches and Wi-Fi routers requiring 3.3V logic.
Industrial Automation
From a 24V supply (down to 2.7V), it powers 3.3V sensors and communication interfaces in factory floor equipment.
Consumer IoT Devices
For smart home hubs and gateways, the LTC3624EDD-3.3 delivers efficient, low-noise 3.3V power from various adapters.
- Q: What type of converter is the LTC3624EDD-3.3?
- A: It is a fixed 3.3V output synchronous step-down (Buck) DC-DC converter.
- Q: What is the input voltage range?
- A: The input voltage range is 2.7V to 17V.
- Q: What is the maximum output current?
- A: It can deliver up to 2A of output current.
- Q: What is the switching frequency?
- A: The switching frequency is fixed at 2.25MHz.
- Q: What package is available?
- A: It comes in an 8-WFDFN exposed pad package.
- Q: What is the output voltage?
- A: The output is fixed at 3.3V, ideal for logic and MCU power.
