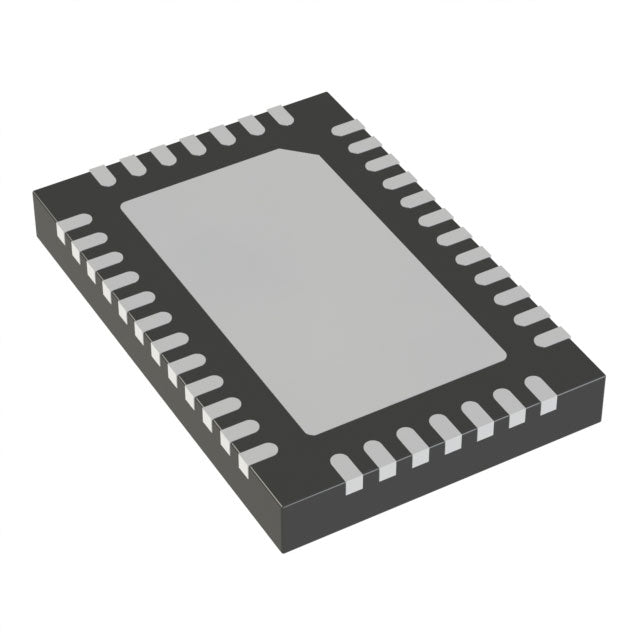

Analog Devices Inc. LTC3859EUHF#PBF
Regular price
$12.32
Regular price
$12.97
Sale price
$12.32
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.32 | $12.32 |
| 15+ | $11.93 | $178.95 |
| 25+ | $11.67 | $291.75 |
| 50+ | $11.02 | $551.00 |
| 100+ | $9.73 | $973.00 |
| N+ | $1.95 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Output Type | Transistor Driver |
| Function | Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Buck-Boost, SEPIC |
| Number of Outputs | 3 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 38V |
| Frequency - Switching | 115kHz ~ 835kHz, 350kHz ~ 535kHz |
| Duty Cycle (Max) | 99%, 100% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Power Good, Soft Start, Tracking |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 38-WFQFN Exposed Pad |
| Supplier Device Package | 38-QFN (5x7) |
| ROHS |  |
LTC3859EUHF#PBF.pdf
×
