Analog Devices Inc. LTC4009CUF#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 34.69 | Dhs. 34.69 |
| 15+ | Dhs. 33.61 | Dhs. 504.15 |
| 25+ | Dhs. 32.88 | Dhs. 822.00 |
| 50+ | Dhs. 31.05 | Dhs. 1,552.50 |
| 100+ | Dhs. 27.40 | Dhs. 2,740.00 |
| N+ | Dhs. 5.48 | Price Inquiry |
Request Quote / Inquiry
LTC4009CUF#PBF Multi-Chemistry Battery Charger IC
The LTC4009CUF#PBF from Analog Devices is a high-performance multi-chemistry battery charger IC designed for versatile charging applications. This advanced integrated circuit supports 1 to 4 cells and features programmable constant charging current, making it ideal for a wide range of battery management systems.
With comprehensive fault protection including over-voltage and reverse current protection, the LTC4009CUF#PBF ensures safe and reliable battery charging operations. The device operates across a wide temperature range (0°C to 85°C) and supports battery pack voltages up to 16.8V with a maximum supply voltage of 28V.

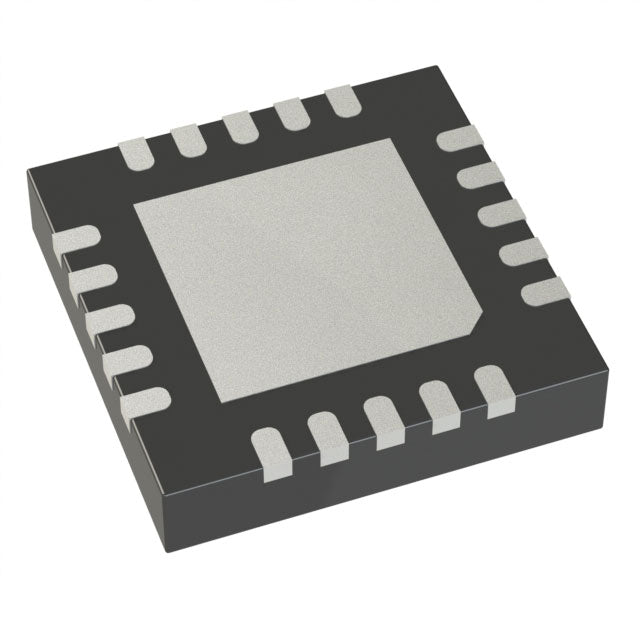

Housed in a compact 20-WFQFN exposed pad package (20-QFN 4x4mm), this surface mount IC is perfect for space-constrained applications while maintaining excellent thermal performance.
Key Features & Benefits
- Multi-Chemistry Support: Compatible with various battery chemistries for flexible application design
- Scalable Cell Configuration: Supports 1 to 4 cells for different voltage requirements
- Programmable Charging: Constant programmable charging current for optimized battery performance
- Advanced Protection: Built-in over-voltage and reverse current protection safeguards your battery system
- Wide Operating Range: Functions reliably from 0°C to 85°C ambient temperature
- Compact Design: Space-saving 20-QFN (4x4mm) package with exposed pad for superior thermal management
Applications
The LTC4009CUF#PBF is ideal for portable electronics, industrial equipment, medical devices, and any application requiring reliable multi-cell battery charging with advanced protection features.
Why Choose HQICKEY?
At HQICKEY, we provide 100% authentic semiconductor components with global shipping and comprehensive warranty support. All our products are sourced directly from authorized distributors to ensure quality and reliability.
Related Products & Resources
Explore our complete range of Battery Chargers for more power management solutions. Visit our homepage to browse our full catalog of authentic semiconductor components, or check out our News Blog for the latest industry insights and product updates.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Battery Chemistry | Multi-Chemistry |
| Number of Cells | 1 ~ 4 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | Over Voltage, Reverse Current |
| Charge Current - Max | - |
| Battery Pack Voltage | 16.8V |
| Voltage - Supply (Max) | 28V |
| Interface | - |
| Operating Temperature | 0°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (4x4) |
LTC4009CUF#PBF.pdf
