Analog Devices Inc. LTC4015IUHF#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $15.48 | $15.48 |
| 15+ | $14.99 | $224.85 |
| 25+ | $14.66 | $366.50 |
| 50+ | $13.85 | $692.50 |
| 100+ | $12.22 | $1,222.00 |
| N+ | $2.44 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | PowerPath™ |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Multi-Chemistry |
| Number of Cells | 1 ~ 9 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer |
| Fault Protection | Over Temperature |
| Charge Current - Max | - |
| Battery Pack Voltage | - |
| Voltage - Supply (Max) | 35V |
| Interface | I2C |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

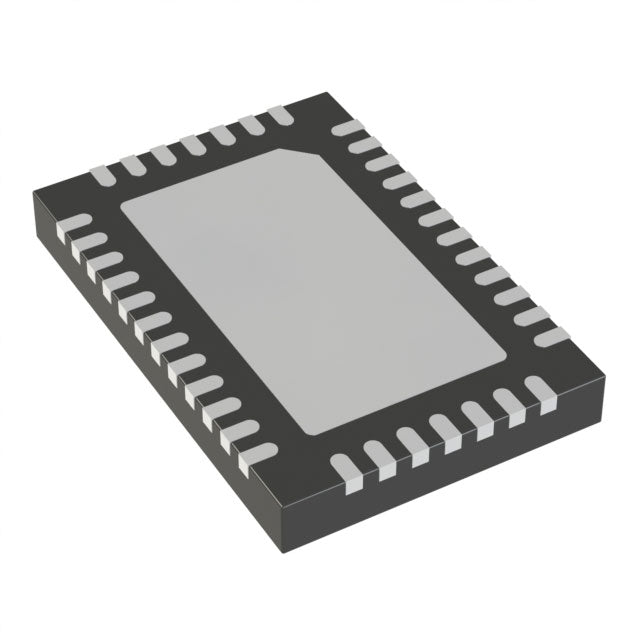

| Package / Case | 38-WFQFN Exposed Pad |
| Supplier Device Package | 38-QFN (5x7) |
| ROHS |  |
The LTC4015IUHF#TRPBF is a multi-chemistry battery charger controller from Analog Devices, supporting 1 to 9 series cells. It features an I2C interface for advanced system integration and includes over temperature protection. Housed in a 38-WFQFN package, it operates over a wide junction temperature range of -40°C to 125°C, making it suitable for industrial and automotive-grade applications.
- Extensive Cell Support: Handles 1 to 9 cells, providing flexibility for a wide range of battery pack designs.
- Digital Control: The I2C interface enables precise monitoring and configuration of the charging process.
- Wide Temperature Range: Operates from -40°C to 125°C, suitable for demanding industrial environments.
- Integrated Protection: Over temperature protection enhances system safety and reliability.
Industrial Energy Storage
With support for up to 9 cells and a -40°C to 125°C junction temperature range, the LTC4015IUHF#TRPBF is ideal for industrial energy storage systems operating in extreme conditions.
Electric Vehicles (EVs) and E-Bikes
The wide cell count support (1-9 cells) and I2C interface make it suitable for battery management in electric bicycles and small electric vehicles.
High-Capacity Portable Power Stations
Its ability to handle multiple cells and communicate via I2C enables sophisticated charging algorithms for large portable power stations.
Telecom Backup Systems
The over temperature protection and wide temperature range ensure reliable charging in outdoor telecom cabinets and base stations.
Robotics and Drones
The I2C interface allows for precise charge control and monitoring, essential for high-performance robotics and drone battery packs.
- Q: What battery chemistries does the LTC4015IUHF#TRPBF support?
- A: It is a multi-chemistry charger, supporting various battery types.
- Q: How many battery cells can it handle?
- A: It supports 1 to 9 series battery cells.
- Q: What fault protection is included?
- A: It includes over temperature protection.
- Q: What interface does it use?
- A: It uses an I2C interface for control and monitoring.
- Q: What is the operating temperature range?
- A: The junction temperature range is -40°C to 125°C, suitable for harsh environments.
- Q: What package is available?
- A: It comes in a 38-WFQFN exposed pad package.
LTC4015IUHF#TRPBF.pdf
- Q: What battery chemistries does the LTC4015IUHF#TRPBF support?
- A: It is a multi-chemistry charger, supporting various battery types.
- Q: How many battery cells can it handle?
- A: It supports 1 to 9 series battery cells.
- Q: What fault protection is included?
- A: It includes over temperature protection.
- Q: What interface does it use?
- A: It uses an I2C interface for control and monitoring.
- Q: What is the operating temperature range?
- A: The junction temperature range is -40°C to 125°C, suitable for harsh environments.
- Q: What package is available?
- A: It comes in a 38-WFQFN exposed pad package.
