Analog Devices Inc. LTC4053EDD-4.2#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.35 | $7.35 |
| 15+ | $7.12 | $106.80 |
| 25+ | $6.97 | $174.25 |
| 50+ | $6.58 | $329.00 |
| 100+ | $5.81 | $581.00 |
| N+ | $1.16 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Timer |
| Fault Protection | Over Temperature |
| Charge Current - Max | - |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 6.5V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

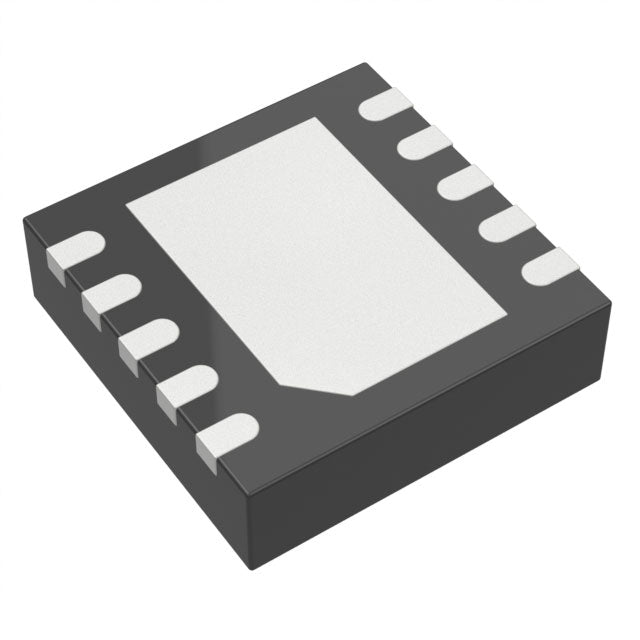

| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
| ROHS |  |
The LTC4053EDD-4.2#PBF is a compact, USB-compatible single-cell Lithium Ion battery charger from Analog Devices Inc. It is designed to charge a 4.2V battery safely. The charger includes over-temperature protection for enhanced safety. Its wide operating temperature range of -40°C to 85°C ensures reliable performance. The device is housed in a very small 10-WFDFN package, making it an excellent choice for space-constrained portable applications.
- Ultra-Compact Design: The 10-WFDFN package is ideal for miniaturized devices.
- USB Compatibility: Simplifies charging from standard USB ports.
- Thermal Safety: Over Temperature protection prevents overheating.
- Wide Temperature Operation: Reliable from -40°C to 85°C.
Compact USB Devices
Ideal for very small, USB-charged devices like fitness trackers and wireless earbuds where board space is at a premium.
Portable Medical Sensors
Its small footprint and wide temperature range make it suitable for wearable medical patches and sensors.
Smart Accessories
Used in smart pens, styluses, and other accessories that require a compact charging solution.
IoT Modules
Perfect for IoT devices and modules that are recharged via USB and need reliable over-temperature protection.
Handheld Scanners
Provides a safe charging solution for compact barcode scanners used in retail and logistics.
- Q: What battery chemistry does the LTC4053EDD-4.2 support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports a single-cell (1) configuration.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What fault protection is included?
- A: It includes Over Temperature protection.
- Q: What interface does it use?
- A: It uses a USB interface for charging.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C (TA).
LTC4053EDD-4.2#PBF.pdf
