Analog Devices Inc. LTC4062EDD#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.50 | $7.50 |
| 15+ | $7.26 | $108.90 |
| 25+ | $7.10 | $177.50 |
| 50+ | $6.71 | $335.50 |
| 100+ | $5.92 | $592.00 |
| N+ | $1.18 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer |
| Fault Protection | - |
| Charge Current - Max | 1A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 8V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

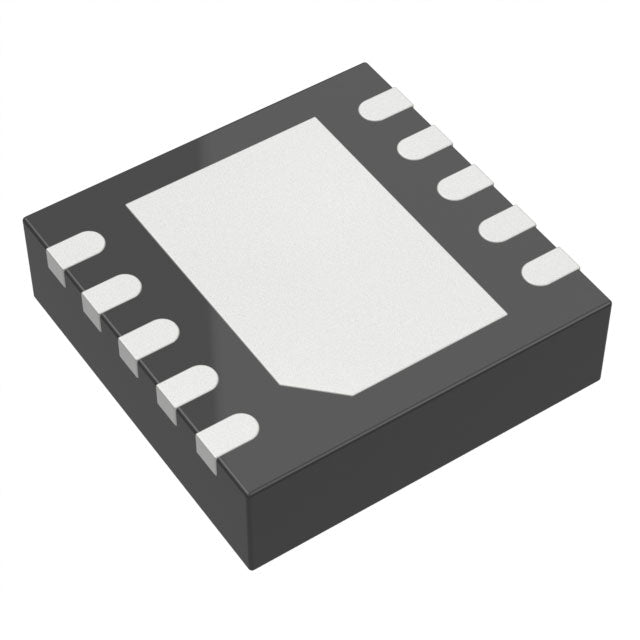

| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
| ROHS |  |
The LTC4062EDD is a USB-compatible single-cell Lithium Ion battery charger from Analog Devices. It provides up to 1A charge current to a 4.2V battery, making it suitable for a wide range of portable consumer electronics. The device operates reliably across -40°C to 85°C, supporting both commercial and industrial applications. Its compact 10-WFDFN exposed pad package is ideal for space-limited designs, while the USB interface simplifies integration into modern devices.
- Efficient USB Charging: Delivers up to 1A to a single Li-Ion cell, optimizing charge time for portable devices.
- Industrial Temperature Range: Operates from -40°C to 85°C, suitable for outdoor and automotive-adjacent environments.
- Compact Footprint: The 10-WFDFN package saves board space, enabling miniaturized product designs.
- Simple Integration: USB interface allows direct connection to standard power sources without complex circuitry.
Smartphones and Tablets
Charge single-cell Lithium Ion batteries in mobile devices via USB, providing up to 1A of current for efficient daily charging cycles.
Bluetooth Accessories
Power wireless earbuds, smartwatches, and fitness trackers that require a compact, reliable charging solution for a 4.2V Li-Ion cell.
Digital Cameras
Recharge camera batteries through a USB connection, ensuring consistent 1A charging for quick turnaround between photo sessions.
GPS Trackers
Maintain power in portable GPS devices used in vehicles or outdoors, benefiting from the wide -40°C to 85°C temperature tolerance.
Portable Gaming Devices
Integrate into handheld gaming consoles where a 1A charge current balances speed and thermal management within a small 10-WFDFN package.
- Q: What battery chemistry is supported?
- A: This charger is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 1A.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What interface does it use?
- A: It uses a USB interface for control and power.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
