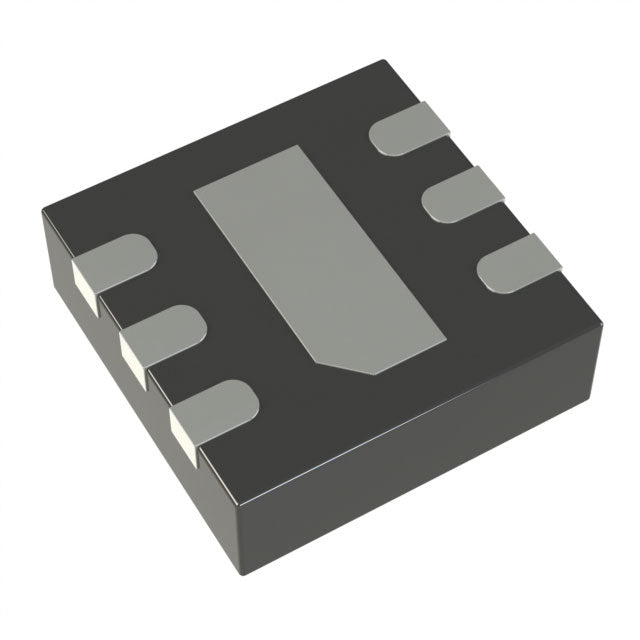

Analog Devices Inc. LTC4065AEDC#TRMPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.52 | $4.52 |
| 15+ | $4.38 | $65.70 |
| 25+ | $4.28 | $107.00 |
| 50+ | $4.05 | $202.50 |
| 100+ | $3.57 | $357.00 |
| N+ | $0.71 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | - |
| Charge Current - Max | 750mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 5.5V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFDFN Exposed Pad |
| Supplier Device Package | 6-DFN (2x2) |
| ROHS |  |
The LTC4065AEDC is a linear battery charger from Analog Devices, designed for single-cell Lithium Ion batteries. It provides a charge current of up to 750mA for a 4.2V battery. The device is housed in a compact 6-WFDFN package, making it suitable for portable and space-constrained applications. It is rated for operation from -40°C to 85°C, ensuring reliable performance across a broad range of conditions. This charger offers a simple, low-component-count solution for consumer and industrial devices.
- Space-Saving Package: The 6-WFDFN package is perfect for miniaturized electronics where board space is at a premium.
- Broad Temperature Range: With a -40°C to 85°C rating, it is versatile for both consumer and industrial applications.
- Low External Component Count: Simplifies design and reduces overall system cost.
- Accurate 4.2V Regulation: Ensures safe and full charging of standard single-cell Li-Ion batteries.
Portable Audio Players
Charge Li-Ion batteries in MP3 players and portable DACs, providing a compact and efficient charging solution.
Smart Home Devices
Power sensors and smart locks with a reliable charging circuit, suitable for indoor controlled environments.
Electronic Cigarettes & Vapes
Offer a safe charging solution for single-cell Li-Ion batteries in personal vaporizers, with a small footprint for slim designs.
Wireless Headsets
Recharge the batteries in Bluetooth earbuds and headsets, leveraging the low quiescent current for extended battery life.
Handheld Test Equipment
Provide a dependable charging source for portable multimeters and field tools, with a wide temperature range for varied job sites.
- Q: What battery chemistry is the LTC4065AEDC for?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells does it support?
- A: It supports a single-cell (1S) configuration.
- Q: What is the maximum charge current?
- A: The maximum charge current is 750mA.
- Q: What is the target battery voltage?
- A: The target battery voltage is 4.2V.
- Q: What is the operating temperature range?
- A: It operates over a temperature range of -40°C to 85°C.
- Q: What package is it available in?
- A: It comes in a 6-WFDFN Exposed Pad package.
