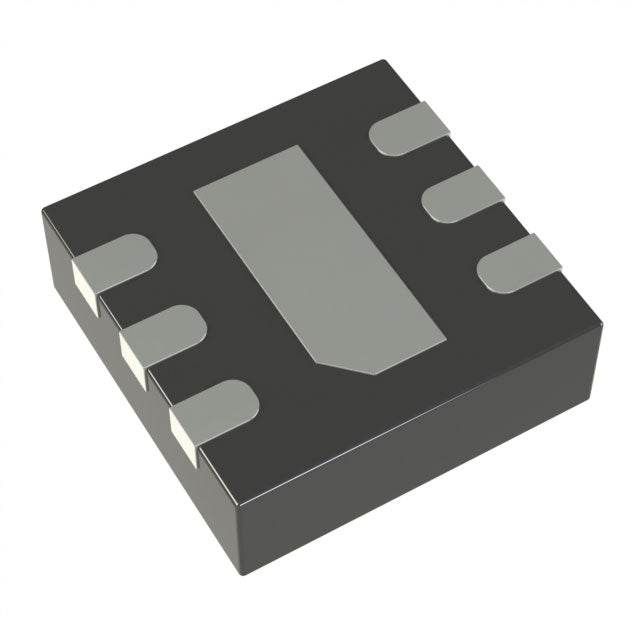

Analog Devices Inc. LTC4065EDC#TRMPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.52 | $4.52 |
| 15+ | $4.38 | $65.70 |
| 25+ | $4.28 | $107.00 |
| 50+ | $4.05 | $202.50 |
| 100+ | $3.57 | $357.00 |
| N+ | $0.71 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | - |
| Charge Current - Max | 750mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 5.5V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFDFN Exposed Pad |
| Supplier Device Package | 6-DFN (2x2) |
| ROHS |  |
The Analog Devices LTC4065EDC is a complete constant-current/constant-voltage charger for single-cell Lithium Ion batteries. It delivers up to 750mA charge current with a 4.2V battery voltage target. The device operates over a wide -40°C to 85°C range and is available in a compact 6-WFDFN package, making it suitable for portable and wearable applications.
- High Accuracy 4.2V Regulation: Ensures full capacity charging without over-stressing the cell.
- Wide Temperature Operation: Rated from -40°C to 85°C, suitable for demanding environments.
- Minimal External Components: Simplifies design and reduces BOM cost.
- Small 6-WFDFN Package: Ideal for space-limited portable devices.
Wearable Fitness Trackers
Charge small Li-Ion cells at up to 750mA, with the tiny 6-WFDFN package fitting into wrist-worn devices.
Bluetooth Earbuds and Charging Cases
Provide a simple, reliable charge solution for single-cell 4.2V batteries in compact audio accessories.
Portable Medical Sensors
Ensure safe charging of single-cell packs in patient monitors, with the wide -40°C to 85°C range supporting clinical environments.
Smart Home Sensors
Power wireless doorbells and thermostats with a dependable 750mA charge current for long-lasting operation.
Handheld Barcode Scanners
Maintain uptime in retail and warehouse scanners with a robust single-cell charger that handles temperature extremes.
- Q: What battery chemistry is the LTC4065EDC designed for?
- A: It is designed for single-cell Lithium Ion batteries.
- Q: How many cells does it support?
- A: It supports exactly 1 cell.
- Q: What is the maximum charge current?
- A: The maximum charge current is 750mA.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C ambient.
- Q: What package is available?
- A: It comes in a 6-WFDFN Exposed Pad package.
