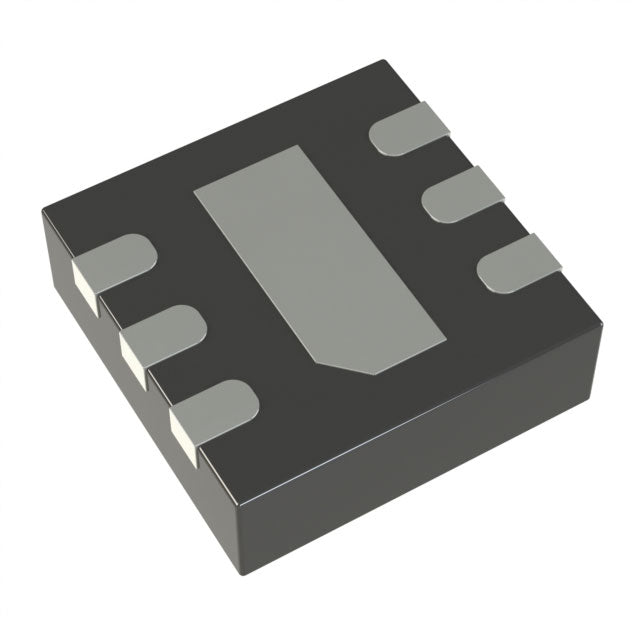

Analog Devices Inc. LTC4065EDC#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.52 | $4.52 |
| 15+ | $4.38 | $65.70 |
| 25+ | $4.28 | $107.00 |
| 50+ | $4.05 | $202.50 |
| 100+ | $3.57 | $357.00 |
| N+ | $0.71 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | - |
| Charge Current - Max | 750mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 5.5V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFDFN Exposed Pad |
| Supplier Device Package | 6-DFN (2x2) |
| ROHS |  |
The LTC4065EDC is a complete constant-current/constant-voltage linear charger for single-cell Lithium Ion batteries from Analog Devices. It delivers a charge current up to 750mA to a 4.2V battery. This device is designed for space-constrained applications, offered in a compact 6-WFDFN package. With an operating temperature range of -40°C to 85°C, it is suitable for a variety of environments. Its simple design requires minimal external components, making it an easy-to-use solution for portable electronics.
- Minimal Footprint: The 6-WFDFN package is ideal for space-limited designs like wearables and IoT devices.
- Simple Design: As a linear charger, it requires very few external components, simplifying the BOM and PCB layout.
- Reliable Operation: Rated for -40°C to 85°C, it can be used in a wide range of environmental conditions.
- Precise Regulation: Provides accurate constant-voltage regulation at 4.2V for safe and complete charging of Li-Ion cells.
Compact Wearables
Charge small Li-Ion batteries in fitness trackers and smartwatches, where the tiny 6-WFDFN package is a critical advantage.
Medical Implants & Monitors
Provide reliable charging for single-cell batteries in hearing aids and portable medical monitors, with a wide temperature range for body-worn devices.
Low-Power IoT Sensors
Maintain power in wireless sensors and beacons, using the 750mA charge current for efficient energy replenishment.
Portable Gaming Devices
Charge handheld gaming consoles and controllers safely, with a simple, low-component-count solution.
Remote Controls
Replace disposable batteries in premium remote controls with a rechargeable Li-Ion cell, charged by this compact IC.
- Q: What battery chemistry does the LTC4065EDC support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports a single-cell (1S) configuration.
- Q: What is the maximum charge current?
- A: The maximum charge current is 750mA.
- Q: What is the target battery voltage?
- A: The target battery voltage is 4.2V.
- Q: What is the operating temperature range?
- A: It operates over a temperature range of -40°C to 85°C.
- Q: What package is it available in?
- A: It comes in a 6-WFDFN Exposed Pad package.
