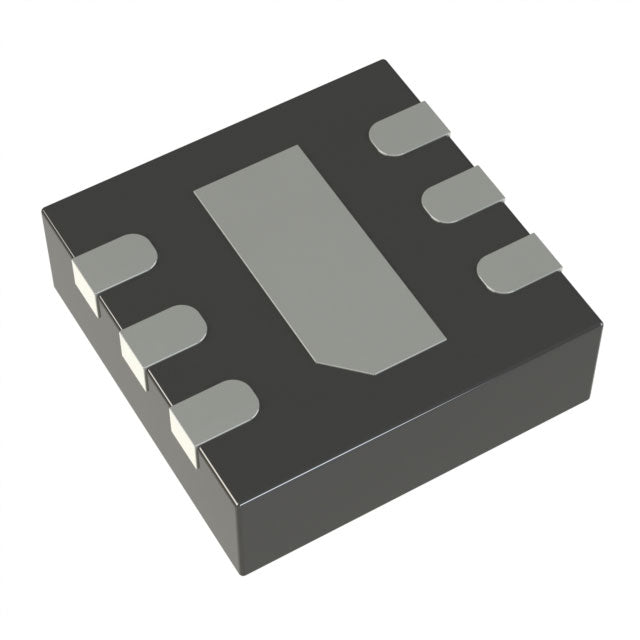

Analog Devices Inc. LTC4065LEDC#TRMPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.67 | $4.67 |
| 15+ | $4.53 | $67.95 |
| 25+ | $4.43 | $110.75 |
| 50+ | $4.18 | $209.00 |
| 100+ | $3.69 | $369.00 |
| N+ | $0.74 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | - |
| Charge Current - Max | 250mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 5.5V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFDFN Exposed Pad |
| Supplier Device Package | 6-DFN (2x2) |
| ROHS |  |
The Analog Devices LTC4065LEDC is a linear charger for single-cell Lithium Ion batteries, delivering a maximum charge current of 250mA at 4.2V. It operates over -40°C to 85°C and is housed in a compact 6-WFDFN package. This charger is well-suited for low-power portable and wearable devices.
- Low Charge Current Precision: Ideal for small-capacity cells, preventing overstress.
- Wide Temperature Range: Reliable from -40°C to 85°C for diverse applications.
- Ultra-Small Package: 6-WFDFN footprint fits miniaturized designs.
- Simple Implementation: Requires minimal external components for quick design-in.
Compact IoT Sensors
Charge small Li-Ion coin cells at 250mA, ideal for battery-powered environmental monitors.
Wireless Earbuds
Provide gentle, safe charging for tiny 4.2V batteries in true-wireless audio devices.
Smart Watches
Maintain battery health with a low-current charge profile suited for small wearable cells.
Medical Implantable Devices
Offer reliable charging in body-worn sensors, with the wide temperature range ensuring consistent performance.
Remote Key Fobs
Keep automotive and home key fobs powered with a simple, low-cost charging solution.
- Q: What battery chemistry does the LTC4065LEDC support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports 1 cell.
- Q: What is the maximum charge current?
- A: The maximum charge current is 250mA.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C ambient.
- Q: What package is it available in?
- A: It comes in a 6-WFDFN Exposed Pad package.
LTC4065LEDC#TRMPBF.pdf
- Q: What battery chemistry does the LTC4065LEDC support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports 1 cell.
- Q: What is the maximum charge current?
- A: The maximum charge current is 250mA.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C ambient.
- Q: What package is it available in?
- A: It comes in a 6-WFDFN Exposed Pad package.
