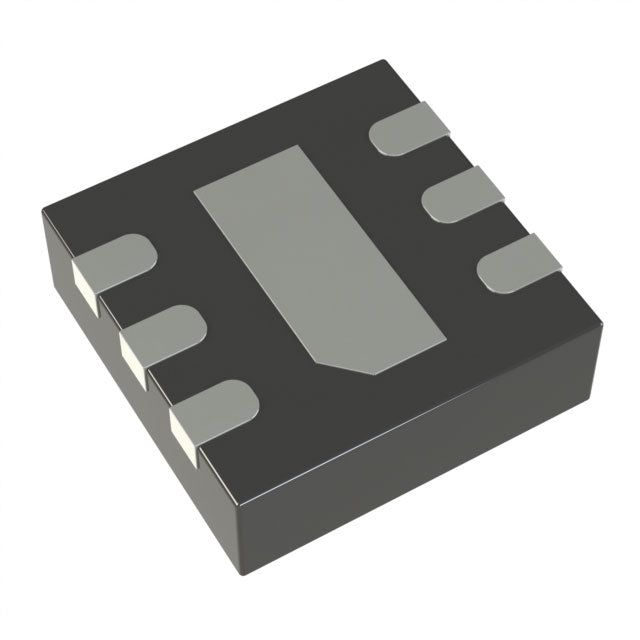

Analog Devices Inc. LTC4065LEDC#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.67 | $4.67 |
| 15+ | $4.53 | $67.95 |
| 25+ | $4.43 | $110.75 |
| 50+ | $4.18 | $209.00 |
| 100+ | $3.69 | $369.00 |
| N+ | $0.74 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | - |
| Charge Current - Max | 250mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 5.5V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFDFN Exposed Pad |
| Supplier Device Package | 6-DFN (2x2) |
| ROHS |  |
The LTC4065LEDC is a linear battery charger from Analog Devices tailored for single-cell Lithium Ion batteries. It provides a maximum charge current of 250mA and is designed for a 4.2V battery voltage. This charger is housed in a compact 6-WFDFN Exposed Pad package, making it ideal for small, low-power portable devices. It is specified to operate over a temperature range of -40°C to 85°C.
- Ultra-Compact: The 6-WFDFN package is ideal for miniaturized electronics.
- Low Current Charging: The 250mA output is perfect for small-capacity batteries.
- Reliable Performance: Operates over a wide -40°C to 85°C temperature range.
- Simple Integration: Linear charger design requires minimal external components.
Low-Power IoT Sensors
With a 250mA charge current, it is perfect for charging the small batteries in wireless sensors and beacons that have low power consumption.
Hearing Aids
The compact size and low charge current make it suitable for rechargeable hearing aids and other small medical devices.
Coin Cell Charging
Ideal for charging single-cell Lithium Ion coin cells used in RTC backup and small memory circuits.
Portable Bar Code Scanners
Can be used in low-power handheld scanners where a modest charge current is sufficient for overnight charging.
Smart Cards
Its small footprint allows for integration into smart cards with thin, flexible batteries.
- Q: What battery chemistry is the LTC4065LEDC for?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells does it support?
- A: It supports 1 cell.
- Q: What is the maximum charge current?
- A: The maximum charge current is 250mA.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
- Q: What package is it offered in?
- A: It comes in a 6-WFDFN Exposed Pad package.
