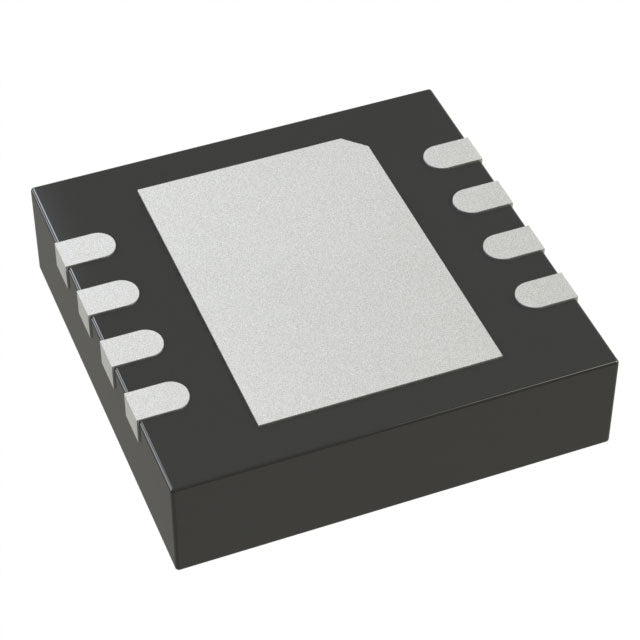

Analog Devices Inc. LTC4068EDD-4.2#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.80 | $6.80 |
| 15+ | $6.59 | $98.85 |
| 25+ | $6.44 | $161.00 |
| 50+ | $6.09 | $304.50 |
| 100+ | $5.37 | $537.00 |
| N+ | $1.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current |
| Fault Protection | - |
| Charge Current - Max | 950mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 6.5V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x3) |
| ROHS |  |
The LTC4068EDD-4.2#PBF is a linear battery charger from Analog Devices, tailored for single-cell Lithium Ion batteries. It supports a charge current up to 950mA and regulates the battery voltage to 4.2V. This charger is housed in a compact 8-WFDFN package and is rated for an industrial temperature range of -40°C to 85°C, making it a dependable choice for rugged and industrial portable applications.
- Industrial Temperature Range: Operates from -40°C to 85°C, suitable for harsh environments.
- High Charge Current: Supports up to 950mA for efficient charging of single-cell Li-Ion batteries.
- Compact Footprint: The 8-WFDFN package saves valuable board space in dense designs.
- Robust Performance: Designed for reliable operation in demanding industrial and automotive applications.
Industrial Sensors and Transmitters
The -40°C to 85°C operating range allows the LTC4068EDD-4.2#PBF to be used in industrial sensors and wireless transmitters exposed to extreme temperatures.
Portable Diagnostic Equipment
Its 950mA charge current is suitable for powering and charging handheld diagnostic tools used in field service and maintenance.
Single-Cell Li-Ion Power Tools
For compact, single-cell power tools, this charger provides a robust solution with a high charge current for faster turnaround.
Automotive Accessories
The wide temperature range makes it suitable for aftermarket automotive accessories that must withstand under-hood or in-cabin temperature variations.
Rugged Consumer Electronics
Ideal for ruggedized smartphones or tablets designed for outdoor and demanding use, ensuring reliable charging in various climates.
- Q: What battery chemistry does the LTC4068EDD-4.2#PBF support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports 1 cell.
- Q: What is the maximum charge current?
- A: The maximum charge current is 950mA.
- Q: What is the battery voltage?
- A: The battery regulation voltage is 4.2V.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C (TA).
- Q: What package is available?
- A: It comes in an 8-WFDFN Exposed Pad package.
