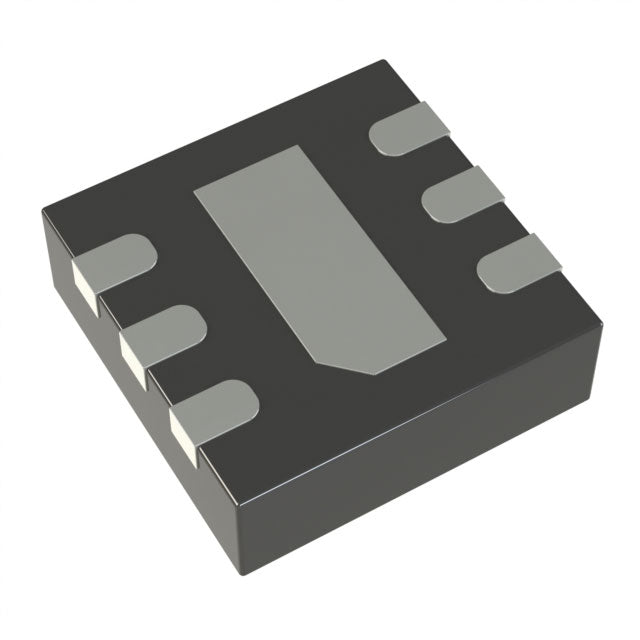

Analog Devices Inc. LTC4069EDC#TRMPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.67 | $4.67 |
| 15+ | $4.53 | $67.95 |
| 25+ | $4.43 | $110.75 |
| 50+ | $4.18 | $209.00 |
| 100+ | $3.69 | $369.00 |
| N+ | $0.74 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | - |
| Charge Current - Max | 750mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 5.5V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFDFN Exposed Pad |
| Supplier Device Package | 6-DFN (2x2) |
| ROHS |  |
The LTC4069EDC from Analog Devices is a linear battery charger designed for single-cell Lithium Ion batteries. It delivers a charge current of up to 750mA and is configured for a 4.2V battery voltage. The device is packaged in a compact 6-WFDFN Exposed Pad package, which is ideal for portable and space-constrained electronics. It is rated for operation over a temperature range of -40°C to 85°C.
- Miniature Footprint: The 6-WFDFN package is perfect for compact, portable designs.
- Efficient Charging: Offers a stable 750mA current for single-cell Lithium Ion batteries.
- Broad Temperature Tolerance: Operates reliably from -40°C to 85°C.
- Cost-Effective: Linear charging topology provides a simple and economical solution.
Wearable Fitness Trackers
Its small footprint and 750mA charge current are well-suited for charging the single-cell batteries in fitness bands and smartwatches.
Portable Gaming Devices
Provides a reliable charging solution for handheld gaming consoles that use a single 4.2V Lithium Ion cell.
Wireless Headphones
Ideal for charging cases and internal batteries of true wireless earbuds, offering a compact and efficient design.
Remote Controls
Can be integrated into rechargeable remote controls for TVs and set-top boxes, reducing battery waste.
Security Cameras
Suitable for battery-powered indoor security cameras that require a dependable charging circuit.
- Q: What battery chemistry does the LTC4069EDC support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports 1 cell.
- Q: What is the maximum charge current?
- A: The maximum charge current is 750mA.
- Q: What is the target battery voltage?
- A: The battery voltage is 4.2V.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
- Q: What package is it available in?
- A: It is available in a 6-WFDFN Exposed Pad package.
