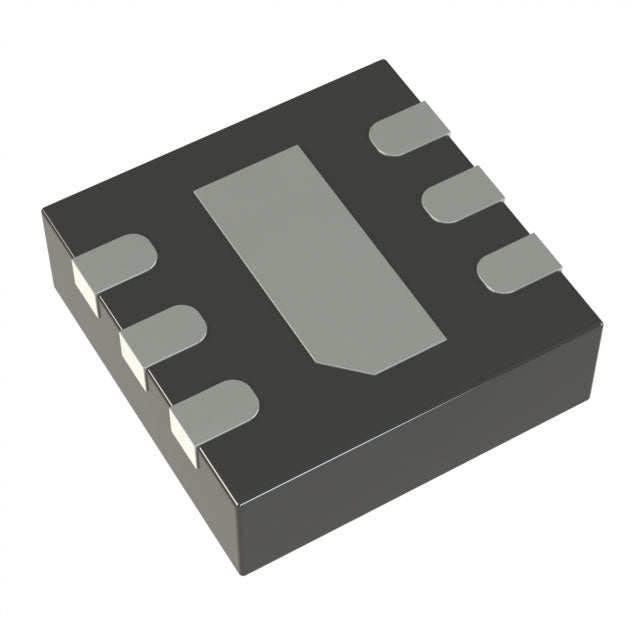

Analog Devices Inc. LTC4069EDC#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.67 | $4.67 |
| 15+ | $4.53 | $67.95 |
| 25+ | $4.43 | $110.75 |
| 50+ | $4.18 | $209.00 |
| 100+ | $3.69 | $369.00 |
| N+ | $0.74 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | - |
| Charge Current - Max | 750mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 5.5V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFDFN Exposed Pad |
| Supplier Device Package | 6-DFN (2x2) |
| ROHS |  |
The LTC4069EDC is a standalone linear battery charger from Analog Devices for single-cell Lithium Ion batteries. It provides a charge current up to 750mA and targets a 4.2V battery voltage. This charger is housed in a compact 6-WFDFN Exposed Pad package, making it suitable for space-limited portable applications. It is designed to operate over a wide temperature range of -40°C to 85°C, ensuring reliable performance in various conditions.
- Compact Solution: The 6-WFDFN package is ideal for miniaturized portable devices.
- Reliable Charging: Provides a consistent 750mA charge current for single-cell Lithium Ion batteries.
- Wide Operating Range: Functions effectively from -40°C to 85°C for versatile applications.
- Simple Design: Linear topology offers a low-cost, easy-to-implement charging solution.
Compact Consumer Electronics
Ideal for charging single-cell Lithium Ion batteries in devices like Bluetooth headsets and digital cameras where a charge current of 750mA is sufficient.
Portable Medical Devices
The wide temperature range and small 6-WFDFN package make it suitable for portable health monitors and diagnostic tools.
Handheld Instrumentation
Perfect for multimeters and field testers that require a reliable, low-cost charging solution for a single 4.2V cell.
Smart Home Sensors
Can be used in battery-powered IoT sensors and smart locks, providing a simple and efficient charging method.
Rechargeable Flashlights
Its compact size and adequate current make it a good fit for high-end rechargeable LED flashlights.
- Q: What battery chemistry is the LTC4069EDC designed for?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells does it support?
- A: It supports 1 cell.
- Q: What is the maximum charge current?
- A: The maximum charge current is 750mA.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
- Q: What package is available?
- A: It comes in a 6-WFDFN Exposed Pad package.
