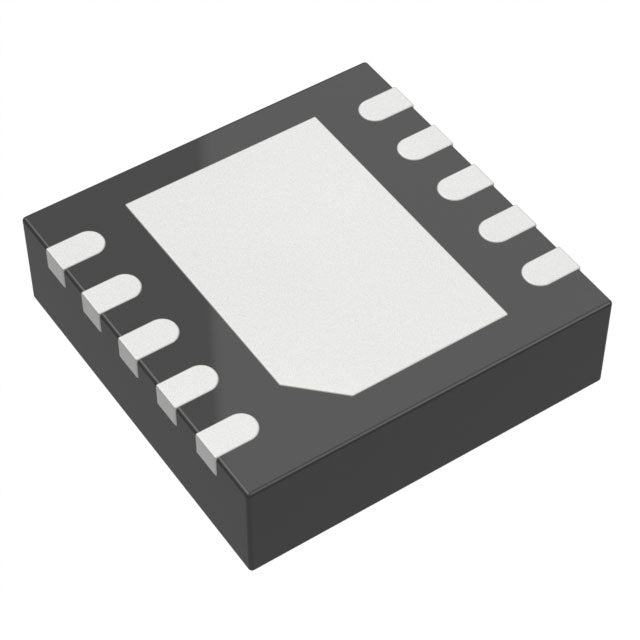

Analog Devices Inc. LTC4076EDD#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.80 | $6.80 |
| 15+ | $6.59 | $98.85 |
| 25+ | $6.44 | $161.00 |
| 50+ | $6.09 | $304.50 |
| 100+ | $5.37 | $537.00 |
| N+ | $1.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current |
| Fault Protection | - |
| Charge Current - Max | 950mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 8V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
| ROHS |  |
The LTC4076EDD is a USB-compatible linear battery charger for single-cell Lithium Ion batteries. It provides up to 950mA charge current with a 4.2V termination voltage. The device includes a USB interface for direct connection to standard charging ports. Operating from -40°C to 85°C, it is packaged in a 10-WFDFN with exposed pad for thermal management. This charger is suited for portable consumer and industrial devices that recharge via USB.
- USB interface simplifies integration with standard charging adapters and ports.
- 950mA charge current enables rapid charging of single-cell Li-Ion batteries.
- Wide -40°C to 85°C temperature range supports outdoor and industrial use.
- 10-WFDFN package with exposed pad enhances heat dissipation in compact layouts.
USB-Powered Devices
The integrated USB interface allows direct charging from USB ports, making it ideal for portable speakers, e-cigarettes, and small appliances.
Portable Power Banks
Single-cell Li-Ion power banks can use this charger to safely manage 950mA charging from a USB source.
Wireless Headphones
Charging cases for earbuds benefit from the USB compatibility and compact 10-WFDFN package.
Smart Home Devices
Battery-powered smart locks and sensors can be recharged via USB, leveraging the wide -40°C to 85°C temperature range.
Handheld Test Equipment
Field-use multimeters and detectors benefit from reliable USB charging and robust temperature tolerance.
- Q: What battery chemistry does the LTC4076EDD support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports a single-cell (1) configuration.
- Q: What is the maximum charge current?
- A: The maximum charge current is 950mA.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What interface does it use?
- A: It features a USB interface for charging control.
- Q: What package is available?
- A: It comes in a 10-WFDFN Exposed Pad package.
LTC4076EDD#PBF.pdf
- Q: What battery chemistry does the LTC4076EDD support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports a single-cell (1) configuration.
- Q: What is the maximum charge current?
- A: The maximum charge current is 950mA.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What interface does it use?
- A: It features a USB interface for charging control.
- Q: What package is available?
- A: It comes in a 10-WFDFN Exposed Pad package.
