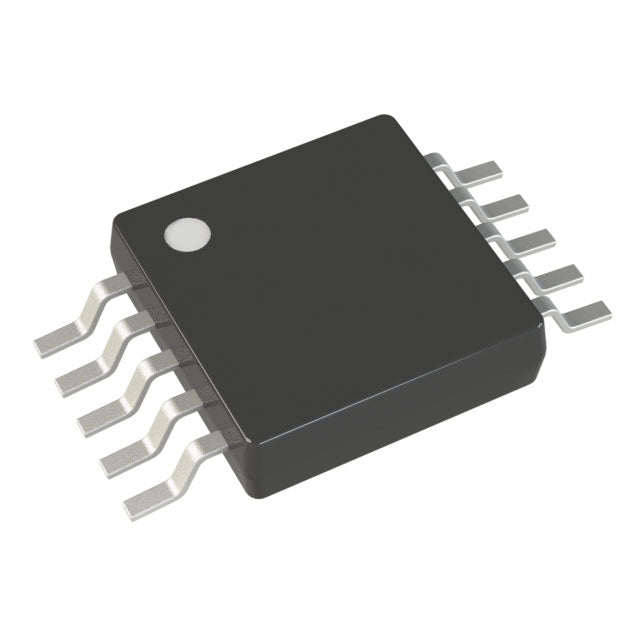

Analog Devices Inc. LTC4080EMSE#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.75 | $6.75 |
| 15+ | $6.54 | $98.10 |
| 25+ | $6.40 | $160.00 |
| 50+ | $6.04 | $302.00 |
| 100+ | $5.33 | $533.00 |
| N+ | $1.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | - |
| Charge Current - Max | 525mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 5.5V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 10-MSOP-EP |
| ROHS |  |
The LTC4080EMSE#PBF is a linear battery charger designed for single-cell Lithium Ion batteries. It provides a charge current up to 525mA and maintains a 4.2V battery voltage. Operating from -40°C to 85°C, this charger is suitable for a wide range of portable applications. The 10-TFSOP/MSOP package with exposed pad offers excellent thermal performance in a small footprint.
- Low-Current Precision: 525mA charge current is ideal for small Li-Ion batteries.
- Compact Form Factor: 10-MSOP with exposed pad saves space and improves cooling.
- Wide Temperature Operation: -40°C to 85°C for reliable performance.
- Simple Integration: Minimal external components required for basic charging.
Wearable Devices
Charge single-cell Li-Ion batteries in smartwatches and fitness trackers with a modest 525mA current, ideal for small battery capacities.
Portable Audio
Power wireless earbuds and portable speakers, using the compact MSOP package for space-constrained audio designs.
Medical Implants
Support hearing aids and insulin pumps with a reliable charger that operates from -40°C to 85°C for patient safety.
Remote Controls
Recharge Li-Ion batteries in TV remotes and game controllers, providing a simple and efficient charging solution.
Smart Cards
Integrate into thin electronic cards with the low-profile 10-MSOP package, enabling battery-powered functionality.
- Q: What battery chemistry is supported?
- A: It supports Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports 1 cell.
- Q: What is the maximum charge current?
- A: The maximum charge current is 525mA.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C (TA).
- Q: What package is available?
- A: It comes in a 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad package.
