Analog Devices Inc. LTC4085EDE-1#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.60 | $11.60 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | PowerPath™ |
| Packaging | | |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | - |
| Charge Current - Max | 1.5A |
| Battery Pack Voltage | 4.1V |
| Voltage - Supply (Max) | 5.5V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

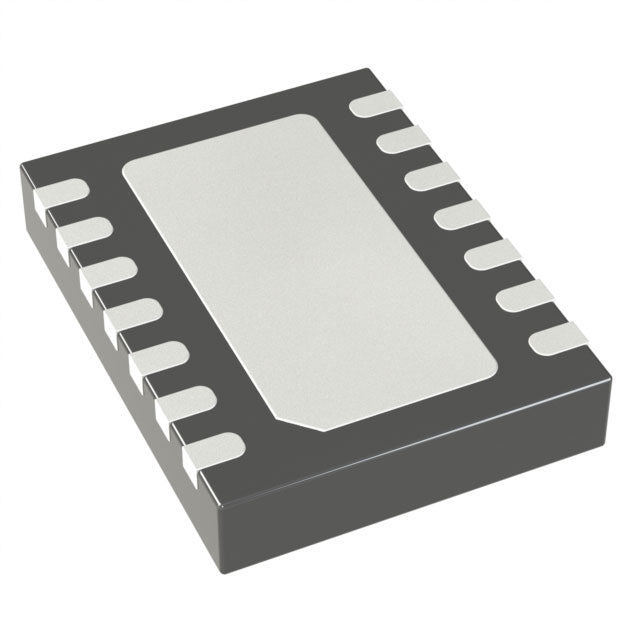

| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-DFN (4x3) |
| ROHS |  |
The LTC4085EDE-1#PBF is a USB-controlled battery charger specifically designed for single-cell Lithium Ion/Polymer batteries. It delivers a programmable charge current up to 1.5A and regulates the battery voltage to 4.1V. This charger integrates over-temperature protection and is housed in a compact 14-WFDFN package, making it suitable for a wide range of portable and space-constrained applications.
- Efficient USB Power Delivery: The integrated USB interface simplifies design and ensures compatibility with standard USB power sources.
- High Charge Current: Supports up to 1.5A, enabling faster charging cycles for single-cell batteries.
- Compact Form Factor: The 14-WFDFN Exposed Pad package minimizes PCB footprint, ideal for portable electronics.
- Wide Operating Temperature: Rated for -40°C to 85°C, ensuring reliable performance in demanding environments.
USB-Powered Portable Devices
Ideal for single-cell Lithium Ion/Polymer devices that charge directly from a USB port, leveraging the integrated USB interface for power management.
Compact Wearable Electronics
The 14-WFDFN Exposed Pad package allows for space-constrained designs in smartwatches and fitness trackers, providing a regulated 4.1V charge.
Handheld Medical Instruments
Provides a reliable 1.5A charge current for single-cell battery packs in portable diagnostic tools, ensuring consistent operation in clinical environments.
Consumer Electronics Accessories
Suitable for Bluetooth headsets and earbuds, offering a dedicated charging solution with over-temperature protection for safe operation.
Industrial Sensor Nodes
With an operating temperature range of -40°C to 85°C, it can be used in industrial sensor nodes that require a robust charging solution for their single-cell Li-Ion battery.
- Q: What battery chemistry does the LTC4085EDE-1#PBF support?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many cells can this charger handle?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.5A.
- Q: What is the battery voltage regulation point?
- A: The battery voltage is regulated at 4.1V.
- Q: What fault protection is included?
- A: It includes Over Temperature protection.
- Q: What interface does it use?
- A: It uses a USB interface for control and power.
