Analog Devices Inc. LTC4085EDE#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.11 | $6.11 |
| 15+ | $5.92 | $88.80 |
| 25+ | $5.79 | $144.75 |
| 50+ | $5.47 | $273.50 |
| 100+ | $4.82 | $482.00 |
| N+ | $0.96 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | PowerPath™ |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | - |
| Charge Current - Max | 1.5A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 5.5V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

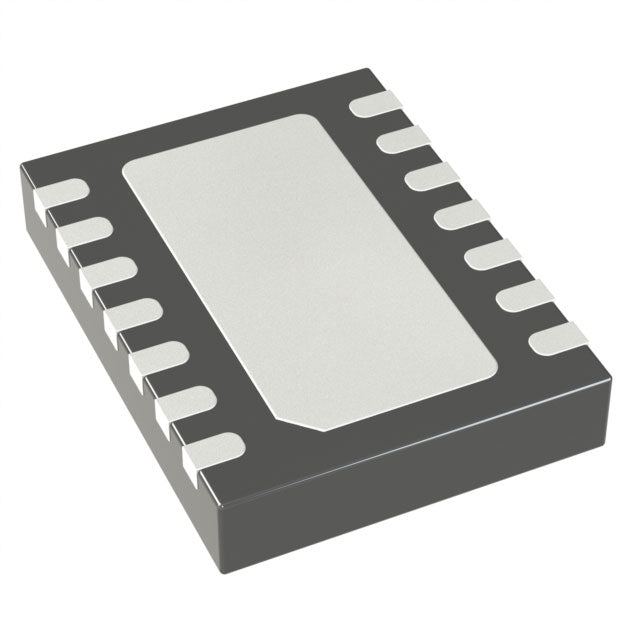

| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-DFN (4x3) |
| ROHS |  |
The LTC4085EDE is a USB-compatible battery charger for single-cell Lithium Ion batteries. It provides a charge current up to 1.5A for a 4.2V battery. The integrated USB interface simplifies design for portable electronics that charge from a USB source. Housed in a 14-WFDFN package with an exposed pad, it operates over a -40°C to 85°C temperature range, making it suitable for various applications.
- Integrated USB interface simplifies charging from standard USB ports.
- High 1.5A charge current enables faster charging cycles.
- Wide -40°C to 85°C operating range ensures reliability in varied environments.
- Compact 14-WFDFN package with exposed pad aids thermal management.
USB-Powered Devices
The LTC4085EDE integrates a USB interface, making it ideal for charging single-cell Li-Ion batteries directly from a USB port in devices like smartphones and tablets.
Portable Media Players
With a 1.5A charge current, it can efficiently charge the batteries in portable media players, reducing downtime.
Handheld Instruments
Its wide temperature range and USB compatibility make it suitable for handheld industrial instruments that are recharged from a computer or USB adapter.
Wireless Peripherals
For wireless keyboards, mice, and headsets with internal Li-Ion batteries, this charger provides a straightforward USB-based charging solution.
Consumer Electronics
The compact 14-WFDFN package and robust charging profile make it a good fit for a wide range of consumer electronics requiring a 4.2V single-cell charge.
- Q: What battery chemistry is supported?
- A: This charger is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports 1 cell.
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.5A.
- Q: What is the battery voltage?
- A: The target battery voltage is 4.2V.
- Q: What interface does it use?
- A: It features a USB interface for control and power.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C (TA).
