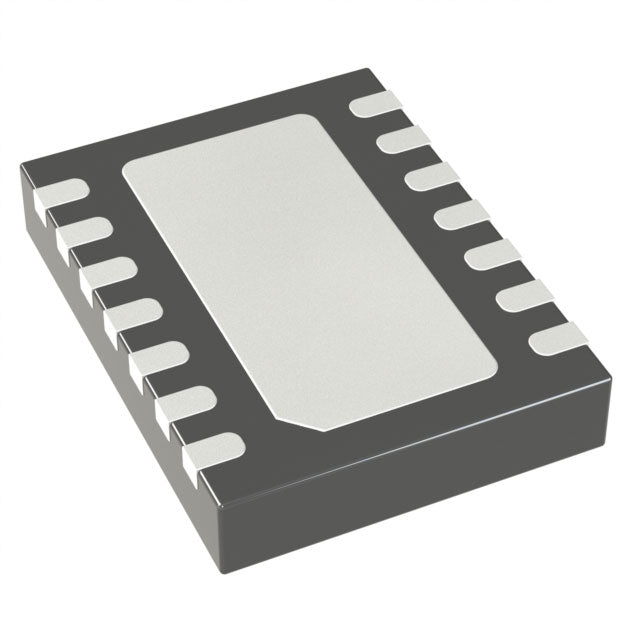

Analog Devices Inc. LTC4088EDE#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.50 | $7.50 |
| 15+ | $7.26 | $108.90 |
| 25+ | $7.10 | $177.50 |
| 50+ | $6.71 | $335.50 |
| 100+ | $5.92 | $592.00 |
| N+ | $1.18 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | PowerPath™ |
| Packaging | Tube | |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | Over Temperature |
| Charge Current - Max | 1.5A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 5.5V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-DFN (4x3) |
| ROHS |  |
The LTC4088EDE is a high-performance USB battery charger from Analog Devices, tailored for single-cell Lithium Ion/Polymer batteries. It supports charge currents up to 1.5A for a 4.2V battery, enabling rapid charging in portable applications. The device features over-temperature protection and operates across -40°C to 85°C, making it suitable for both consumer and industrial use. Housed in a 14-WFDFN package, it offers a compact solution for space-constrained designs.
- Rapid Charging: Up to 1.5A charge current significantly reduces charging time for single-cell Li-Po batteries.
- Robust Thermal Protection: Over-temperature protection ensures safe operation even in high-ambient conditions.
- Wide Operating Range: -40°C to 85°C rating supports deployment in harsh industrial settings.
- Compact and Efficient: 14-WFDFN package with exposed pad aids thermal dissipation and saves PCB space.
High-Capacity Power Banks
Charge the internal single-cell Li-Po battery of a power bank at up to 1.5A, enabling faster recharging of the storage unit itself.
Portable Speakers
Power Bluetooth speakers with a 4.2V Li-Polymer cell, using USB input for convenient charging in home or outdoor settings.
Action Cameras
Recharge action camera batteries quickly with 1.5A current, minimizing downtime between recording sessions in extreme conditions.
Medical Wearables
Support continuous operation of wearable health monitors by providing reliable charging of a single Li-Po cell with over-temperature safety.
Industrial Handhelds
Use in rugged PDAs or barcode scanners that operate in -40°C to 85°C environments, ensuring dependable battery management.
- Q: What battery chemistry does this charger support?
- A: It supports Lithium Ion/Polymer batteries.
- Q: How many cells can it charge?
- A: It is designed for a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.5A.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What protection features are included?
- A: It includes Over Temperature protection.
- Q: What interface does it use?
- A: It uses a USB interface.
LTC4088EDE#PBF.pdf
