Analog Devices Inc. LTC4089EDJC#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.41 | $7.41 |
| 15+ | $7.18 | $107.70 |
| 25+ | $7.02 | $175.50 |
| 50+ | $6.63 | $331.50 |
| 100+ | $5.85 | $585.00 |
| N+ | $1.17 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Timer |
| Fault Protection | - |
| Charge Current - Max | - |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 5.5V, 36V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

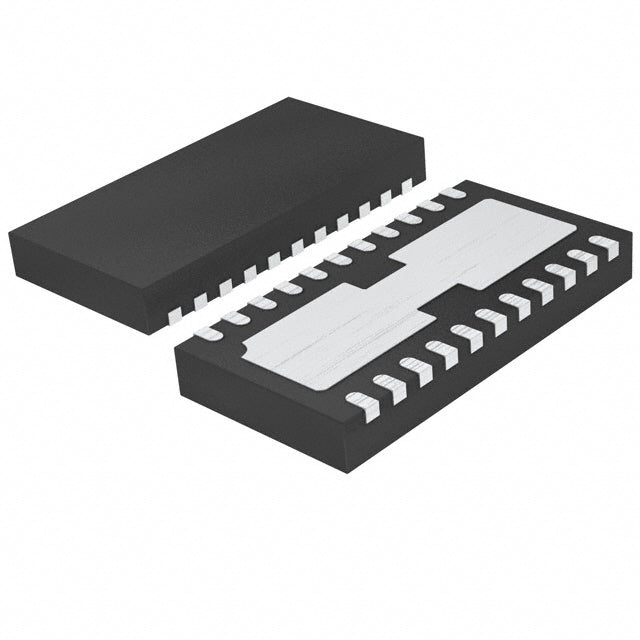

| Package / Case | 22-WFDFN Exposed Pad |
| Supplier Device Package | 22-DFN (6x3) |
| ROHS |  |
The LTC4089EDJC is a USB-compatible battery charger from Analog Devices, designed for single-cell Lithium Ion batteries with a target voltage of 4.2V. It integrates a USB interface for power input and communication. This charger is packaged in a compact 22-WFDFN with an exposed pad for thermal management. It is engineered to operate reliably across a wide temperature range of -40°C to 85°C, making it suitable for various portable applications.
- Universal USB Charging: The integrated USB interface allows for convenient charging from any standard USB port, simplifying product design.
- Reliable in Extreme Conditions: With an operating range of -40°C to 85°C, it is well-suited for outdoor, automotive, and industrial applications.
- Space-Efficient Design: The 22-WFDFN package with an exposed pad helps dissipate heat while saving valuable board space.
- Single-Cell Simplicity: Designed specifically for standard 4.2V Li-Ion cells, ensuring a straightforward and optimized charging algorithm.
USB-Powered Consumer Devices
Ideal for devices like digital cameras and portable speakers that are primarily charged from a USB port, providing a simple and universal charging solution for a single Li-Ion cell.
Portable Printers
Mobile and field printers can be powered and charged via USB, making this charger a practical choice for on-the-go professionals.
GPS Devices
Handheld GPS units used in outdoor applications benefit from the wide -40°C to 85°C operating range, ensuring reliable charging in various climates.
Portable Test Equipment
Calibration tools and field testers that require USB connectivity for data transfer can use this IC to manage battery charging from the same port.
Smart Home Controllers
Battery-backed smart home hubs can use the USB interface for convenient recharging, ensuring the device remains operational during power outages.
- Q: What battery chemistry does the LTC4089EDJC support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports a single-cell (1) configuration.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What control interface is available?
- A: It features a USB interface.
- Q: What is the operating temperature range?
- A: The operating temperature range is -40°C to 85°C (TA).
- Q: What package is the LTC4089EDJC available in?
- A: It is available in a 22-WFDFN Exposed Pad package.
