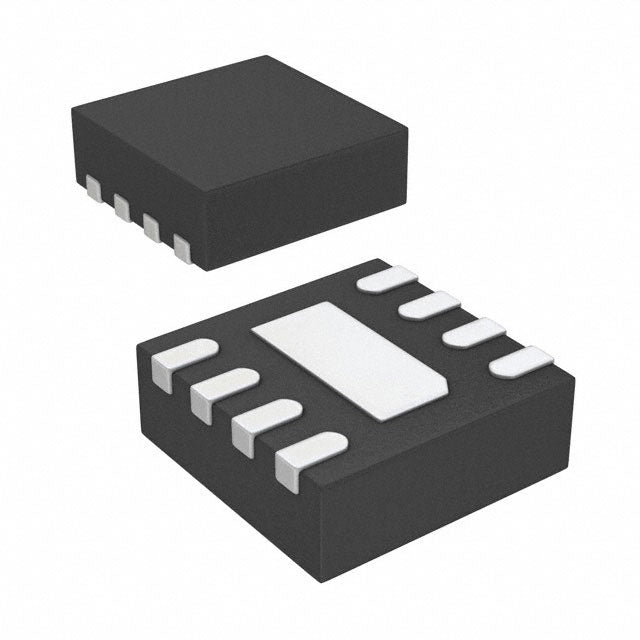

Analog Devices Inc. LTC4095EDC#TRMPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.72 | $4.72 |
| 15+ | $4.57 | $68.55 |
| 25+ | $4.47 | $111.75 |
| 50+ | $4.22 | $211.00 |
| 100+ | $3.73 | $373.00 |
| N+ | $0.75 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | - |
| Charge Current - Max | 950mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 5.5V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x2) |
| ROHS |  |
The LTC4095EDC is a complete USB battery charger for single-cell Lithium Ion/Polymer batteries. It delivers up to 950mA of charge current from a USB interface, making it ideal for portable and compact devices. Housed in a small 8-WFDFN package, this charger operates across a wide temperature range, ensuring reliable performance in various applications.
- Efficient USB Charging: Directly charges from USB ports with up to 950mA, simplifying power design for portable devices.
- Compact Solution: The 8-WFDFN Exposed Pad package minimizes PCB area, perfect for space-limited applications.
- Wide Temperature Operation: Rated for -40°C to 85°C, suitable for industrial and outdoor environments.
- Single-Cell Precision: Optimized for 4.2V Lithium Ion/Polymer cells, ensuring safe and accurate charging.
Portable Electronics
Charge single-cell Lithium Ion/Polymer batteries in smartphones, tablets, and wearable devices via a standard USB port, leveraging the 950mA charge current for efficient power replenishment.
USB-Powered Devices
Integrate into USB-powered gadgets like Bluetooth headsets, e-cigarettes, and GPS trackers, using the USB interface to manage charging directly from a host or wall adapter.
Compact Medical Devices
Utilize the 8-WFDFN Exposed Pad package to build space-constrained medical monitors and drug delivery systems that require reliable single-cell battery management.
Industrial Handhelds
Deploy in rugged handheld scanners and PDAs operating in -40°C to 85°C environments, ensuring dependable charging in demanding industrial settings.
Consumer Accessories
Power smartwatches, fitness bands, and wireless earbuds, where the 4.2V battery voltage and compact footprint are critical for slim product design.
- Q: What battery chemistry does the LTC4095EDC support?
- A: The LTC4095EDC is designed for Lithium Ion/Polymer batteries.
- Q: How many battery cells can it charge?
- A: It supports charging for 1 cell.
- Q: What is the maximum charge current?
- A: The maximum charge current is 950mA.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What interface does it use?
- A: It uses a USB interface for power and control.
- Q: What is the operating temperature range?
- A: The operating temperature range is -40°C to 85°C (TA).
