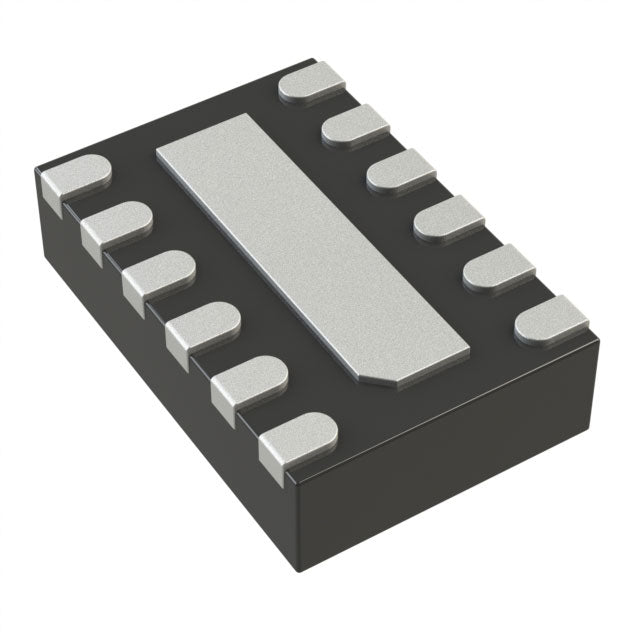

Analog Devices Inc. LTC4097EDDB#TRMPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.83 | $5.83 |
| 15+ | $5.65 | $84.75 |
| 25+ | $5.53 | $138.25 |
| 50+ | $5.22 | $261.00 |
| 100+ | $4.61 | $461.00 |
| N+ | $0.92 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current |
| Fault Protection | - |
| Charge Current - Max | 1.2A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 5.5V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (3x2) |
| ROHS |  |
The LTC4097EDDB#TRMPBF is a USB battery charger for single-cell Lithium Ion/Polymer batteries. It offers a charge current up to 1.2A and a regulation voltage of 4.2V. Packaged in a 12-WFDFN with exposed pad, it operates from -40°C to 85°C, making it a versatile choice for portable and industrial USB-powered charging applications.
- USB compatibility: Enables direct charging from standard USB ports.
- High charge current: Supports up to 1.2A for faster battery replenishment.
- Robust temperature range: Operates from -40°C to 85°C for harsh environments.
- Compact footprint: The 12-WFDFN package is optimized for space-constrained PCBs.
Compact USB Chargers
This IC provides a USB-controlled charging solution for single-cell Li-Polymer batteries, delivering up to 1.2A for portable devices.
Portable Bluetooth Speakers
With its small 12-WFDFN package and USB interface, it is well-suited for charging internal batteries in wireless speakers.
Digital Cameras
Cameras with single-cell Li-Ion batteries can benefit from the reliable 4.2V charging profile and high current capability.
GPS Trackers
The wide operating temperature range (-40°C to 85°C) makes it suitable for automotive and outdoor GPS tracking devices.
Smart Home Sensors
Battery-powered IoT sensors can be recharged via USB, simplifying maintenance and extending product life.
- Q: What battery chemistry does the LTC4097EDDB#TRMPBF support?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many cells can it charge?
- A: It supports a single-cell (1) configuration.
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.2A.
- Q: What is the battery voltage?
- A: The battery regulation voltage is 4.2V.
- Q: Does it have a USB interface?
- A: Yes, it includes a USB interface.
- Q: What is the package type?
- A: It is available in a 12-WFDFN Exposed Pad package.
