Analog Devices Inc. LTC4156EUFD#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 15.77 | Dhs. 15.77 |
| 15+ | Dhs. 15.27 | Dhs. 229.05 |
| 25+ | Dhs. 14.94 | Dhs. 373.50 |
| 50+ | Dhs. 14.11 | Dhs. 705.50 |
| 100+ | Dhs. 12.45 | Dhs. 1,245.00 |
| N+ | Dhs. 2.49 | Price Inquiry |
Request Quote / Inquiry

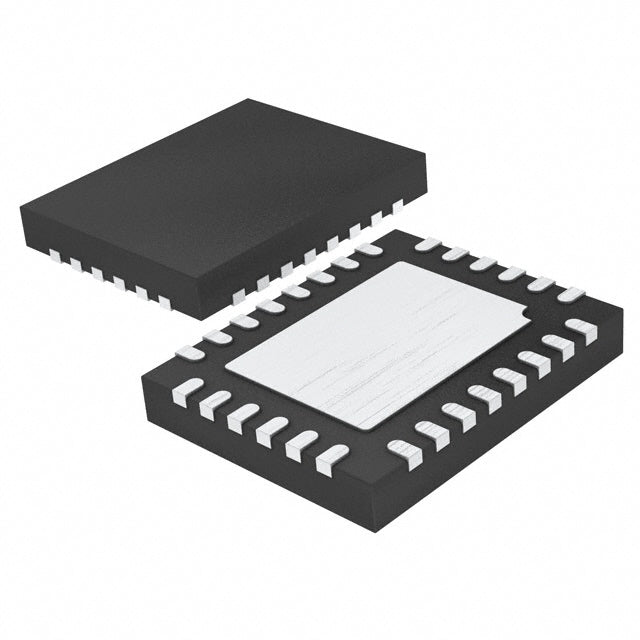

LTC4156EUFD#TRPBF - PowerPath™ Battery Charger IC
The LTC4156EUFD#TRPBF from Analog Devices is a high-performance PowerPath™ battery charger IC specifically designed for single-cell Lithium Iron Phosphate (LiFePO4) battery applications. This advanced charging solution delivers up to 3.7A of programmable constant charge current, making it ideal for portable devices, industrial equipment, and embedded systems requiring reliable power management.
Key Features & Benefits
- PowerPath™ Technology: Enables simultaneous charging and system operation with intelligent power distribution
- High Charge Current: Supports up to 3.7A programmable constant current charging for fast battery replenishment
- Flexible Interfaces: I2C and USB connectivity for easy integration and control
- Wide Operating Range: Functions reliably from -40°C to 125°C junction temperature
- Compact Package: 28-QFN (4x5mm) surface mount package saves valuable board space
- Overvoltage Protection: Built-in fault protection safeguards your battery and system
Applications
This battery charger IC is perfectly suited for portable medical devices, handheld instruments, industrial IoT sensors, battery-powered tools, and any application requiring efficient single-cell LiFePO4 battery management with PowerPath capability.
Quality & Authenticity
At HQICKEY, we guarantee authentic Analog Devices components with full traceability and lifecycle support. Each LTC4156EUFD#TRPBF is sourced directly from authorized channels and comes with complete documentation to support your design decisions.
Related Products & Resources
Explore our complete range of Battery Chargers for embedded and industrial applications.
Visit HQICKEY to discover our full catalog of premium semiconductors, memory, microprocessors, FPGAs, and power management solutions.
Stay informed with the latest technical insights and product updates on our News & Technical Blog.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | PowerPath™ |
| Packaging | Tape & Reel (TR) | |
| Battery Chemistry | Lithium Iron Phosphate |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | Over Voltage |
| Charge Current - Max | 3.7A |
| Battery Pack Voltage | 3.8V |
| Voltage - Supply (Max) | 5.5V |
| Interface | I2C, USB |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (4x5) |
| ROHS |  |
LTC4156EUFD#TRPBF.pdf
