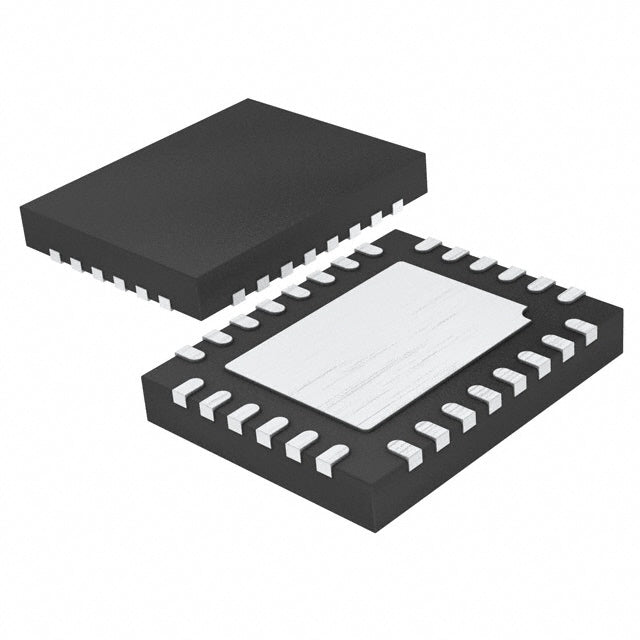

Analog Devices Inc. LTC4162EUFD-SAD#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $15.05 | $15.05 |
| 15+ | $3.46 | $51.90 |
| 25+ | $3.38 | $84.50 |
| 50+ | $3.20 | $160.00 |
| 100+ | $2.82 | $282.00 |
| N+ | $0.56 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | PowerPath™ |
| Packaging | Tape & Reel (TR) | |
| Function | Battery Monitor |
| Battery Chemistry | Lead Acid |
| Number of Cells | 3 ~ 12 |
| Fault Protection | Over Current, Over Temperature, Over Voltage |
| Interface | I2C |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (4x5) |
| ROHS |  |
The LTC4162EUFD-SAD is a robust Battery Monitor from Analog Devices, specifically designed for Lead Acid battery systems with 3 to 12 cells. It offers essential fault protection including Over Current, Over Temperature, and Over Voltage, ensuring safe and reliable operation. The I2C interface provides seamless digital communication for battery health monitoring. Packaged in a 28-WFQFN Exposed Pad, this monitor operates over a wide -40°C to 125°C junction temperature range, making it ideal for industrial and automotive applications.
- Lead-Acid Optimized: Specifically designed for 3-12 cell lead-acid batteries, providing accurate monitoring for this chemistry.
- Robust Protection: Includes Over Current, Over Temperature, and Over Voltage protection to safeguard the battery and system.
- I2C Digital Interface: Enables easy integration with microcontrollers for real-time data logging and diagnostics.
- Wide Temperature Range: Rated for -40°C to 125°C (TJ), suitable for harsh industrial environments.
- Compact Form Factor: The 28-WFQFN Exposed Pad package saves board space in dense BMS layouts.
Lead-Acid Backup Power Systems
Monitor 3-12 cell lead-acid batteries in telecom towers or data center UPS systems. The I2C interface allows remote monitoring of battery health and charge status.
Automotive Start-Stop Batteries
Use in vehicles with start-stop technology to monitor the 12V lead-acid battery. Over Voltage and Over Current protection help prevent damage during engine cranking and alternator surges.
Solar Energy Storage
Integrate into off-grid solar power systems with lead-acid battery banks. The wide cell count range (3-12) accommodates various system voltages from 6V to 24V.
Forklift and Material Handling Equipment
Monitor lead-acid traction batteries in electric forklifts. The rugged -40°C to 125°C temperature range ensures reliable operation in warehouse environments.
Marine and RV Power Systems
Deploy in boats or recreational vehicles for monitoring house battery banks. The compact 28-WFQFN package fits into existing BMS boards.
Industrial Uninterruptible Power Supplies
Use in industrial UPS units where lead-acid batteries are standard. The I2C interface enables precise state-of-charge tracking for maintenance scheduling.
- Q: What is the function of the LTC4162EUFD-SAD?
- A: It is a Battery Monitor for lead-acid battery systems.
- Q: Which battery chemistry does it support?
- A: It is designed for Lead Acid batteries.
- Q: How many cells can it monitor?
- A: It supports 3 to 12 cells.
- Q: What fault protection is included?
- A: It provides Over Current, Over Temperature, and Over Voltage protection.
- Q: What interface does it use?
- A: It uses the I2C interface.
- Q: What is the temperature range and package?
- A: It operates from -40°C to 125°C (TJ) and is available in a 28-WFQFN Exposed Pad package.
