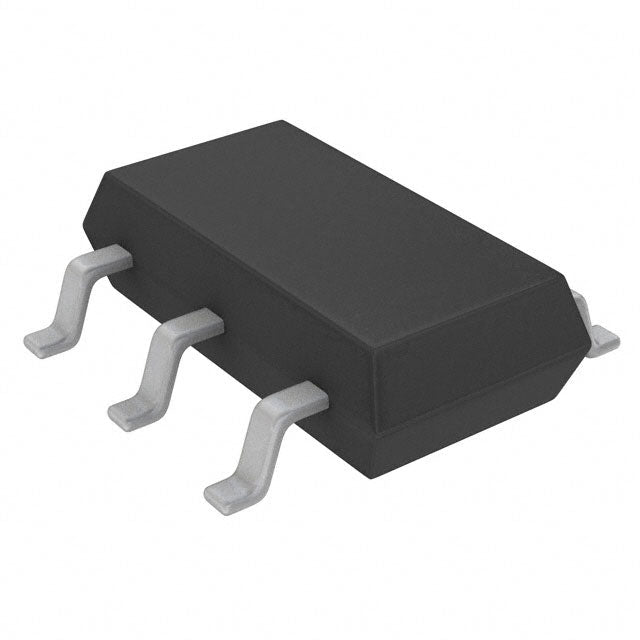

Analog Devices Inc. LTC4410ES6#TRMPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.68 | $5.68 |
| 15+ | $5.50 | $82.50 |
| 25+ | $5.38 | $134.50 |
| 50+ | $5.08 | $254.00 |
| 100+ | $4.49 | $449.00 |
| N+ | $0.90 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | - |
| Programmable Features | - |
| Fault Protection | Over Temperature, Reverse Current |
| Charge Current - Max | - |
| Battery Pack Voltage | - |
| Voltage - Supply (Max) | 5.5V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | TSOT-23-6 |
| ROHS |  |
The LTC4410ES6#TRMPBF is a linear battery charger IC from Analog Devices, designed for single-cell Lithium Ion batteries. It includes over-temperature and reverse current protection for safe and reliable operation. Featuring a USB interface, it is well-suited for USB-powered charging applications. Packaged in a compact SOT-23-6 Thin / TSOT-23-6, it operates over an ambient temperature range of -40°C to 85°C, making it ideal for portable and space-constrained designs.
- Reverse current protection prevents battery discharge through the charger when input power is removed.
- Over-temperature protection ensures safe operation under fault conditions.
- USB interface simplifies integration with standard USB power sources.
- Ultra-compact TSOT-23-6 package is ideal for miniaturized portable devices.
- Wide -40°C to 85°C temperature range supports industrial and outdoor applications.
USB-Powered Single-Cell Chargers
With USB interface and reverse current protection, this IC is ideal for simple USB wall adapters charging single Li-ion cells.
Portable Electronics
Small devices like e-cigarettes, LED flashlights, and compact wearables benefit from the tiny TSOT-23 package.
Battery Backup for RTC
Reverse current protection prevents battery drain when USB power is removed, making it suitable for RTC backup circuits.
Low-Cost Consumer Devices
The minimal external component count reduces BOM cost for high-volume consumer products.
Industrial Handheld Tools
The -40°C to 85°C range supports rugged single-cell tools used in cold storage or outdoor environments.
- Q: What battery chemistry does the LTC4410ES6#TRMPBF support?
- A: It is designed for Lithium Ion batteries.
- Q: How many battery cells can this charger handle?
- A: It supports a single-cell (1) configuration.
- Q: What fault protection is included?
- A: It includes over temperature and reverse current protection.
- Q: What control interface is available?
- A: It features a USB interface.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C (TA).
- Q: What is the package type?
- A: It is available in SOT-23-6 Thin / TSOT-23-6 package.
