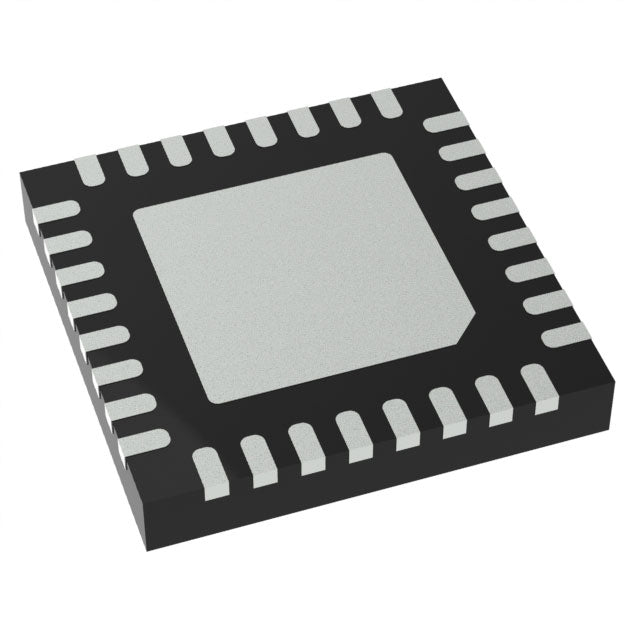

Analog Devices Inc. LTC7812EUH#PBF
Regular price
$11.59
Regular price
$12.20
Sale price
$11.59
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.59 | $11.59 |
| 15+ | $11.22 | $168.30 |
| 25+ | $10.98 | $274.50 |
| 50+ | $10.37 | $518.50 |
| 100+ | $9.15 | $915.00 |
| N+ | $1.83 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Boost |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 38V |
| Frequency - Switching | 115kHz ~ 835kHz, 350kHz ~ 535kHz |
| Duty Cycle (Max) | 96%, 99% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Power Good, Soft Start, Tracking |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
| ROHS |  |
LTC7812EUH#PBF.pdf
×
