Power Integrations LYT4216L
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | LYTSwitch™-4 |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Topology | Flyback, Step-Down (Buck), Step-Up (Boost) |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 99.9% |
| Frequency - Switching | 140kHz |
| Power (Watts) | 35 W |
| Fault Protection | - |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |

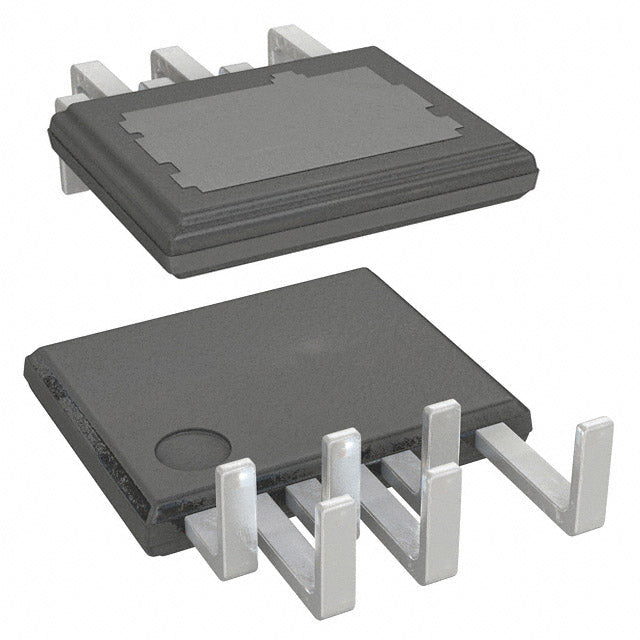

| Package / Case | 7-SSIP, 6 Leads, Exposed Pad, Formed Leads |
| Supplier Device Package | eSIP-7F |
LYT4216L - High-Performance AC-DC Offline Switcher IC
The LYT4216L from Power Integrations is a versatile 35W AC-DC offline switcher IC featuring integrated switches and multi-topology support. Part of the advanced LYTSwitch-4 series, this component delivers exceptional performance for isolated power supply applications across industrial, consumer, and commercial electronics.
Key Features & Benefits
- Multi-Topology Design: Supports flyback, step-down (buck), and step-up (boost) configurations for maximum design flexibility
- High Voltage Capability: 725V breakdown voltage ensures robust operation in demanding applications
- Efficient Switching: 140kHz switching frequency with 99.9% duty cycle for optimal power conversion
- Integrated Protection: Built-in safety features for reliable, long-term operation
- Wide Temperature Range: -40°C to 150°C (TJ) for harsh environment applications
- Compact Package: eSIP-7F through-hole package simplifies PCB design and assembly
Typical Applications
Ideal for LED drivers, auxiliary power supplies, smart home devices, industrial controls, white goods, and consumer electronics requiring efficient, isolated AC-DC conversion up to 35W.
Why Choose LYT4216L?
Power Integrations' LYTSwitch-4 family combines high integration, energy efficiency, and design simplicity. The LYT4216L reduces component count, lowers BOM costs, and accelerates time-to-market while meeting stringent global energy standards.
Authenticity & Support Guarantee
All LYT4216L units are sourced through authorized Power Integrations distribution channels with full manufacturer traceability, documentation, and warranty support. We provide long lifecycle availability and design-in technical assistance to ensure your project success.
LYT4216L.pdf
