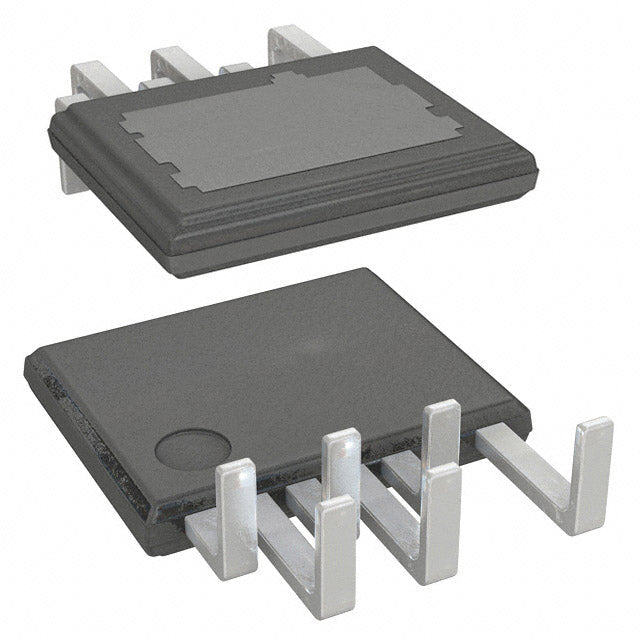

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
LYT4314L
Regular price
Dhs. 355,892.34
Regular price
Dhs. 374,623.52
Sale price
Dhs. 355,892.34
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,892.34 AED | Dhs. 355,892.34 AED |
| 15+ | Dhs. 344,653.64 AED | Dhs. 5,169,804.60 AED |
| 25+ | Dhs. 337,161.17 AED | Dhs. 8,429,029.25 AED |
| 50+ | Dhs. 318,429.99 AED | Dhs. 15,921,499.50 AED |
| 100+ | Dhs. 280,967.64 AED | Dhs. 28,096,764.00 AED |
| N+ | Dhs. 56,193.53 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Recycling Electronic Components
LYT4314L - LYTSwitch-4 Series AC-DC Offline Switching IC
The LYT4314L from Power Integrations is a high-performance AC-DC offline switching IC from the LYTSwitch-4 family, designed for isolated power conversion applications up to 22W. Featuring an integrated 725V MOSFET and advanced control circuitry, this IC enables compact, efficient flyback, buck, and boost converter designs with minimal external components.
Key Features & Benefits
- Integrated 725V Power MOSFET - Reduces component count and board space
- 22W Output Power - Ideal for LED drivers, auxiliary supplies, and consumer electronics
- 140kHz Switching Frequency - Enables smaller magnetics and compact designs
- Multi-Topology Support - Flyback, step-down (buck), and step-up (boost) configurations
- 99.9% Duty Cycle - Maximizes efficiency across load conditions
- Wide Operating Temperature Range - -40°C to 150°C (TJ) for demanding environments
- eSIP-7F Package - Through-hole mounting with exposed pad for enhanced thermal performance
Typical Applications
- LED lighting drivers and ballasts
- Auxiliary power supplies for industrial equipment
- Consumer electronics adapters and chargers
- Smart home and IoT device power modules
- Telecom and networking equipment
Why Choose Authorized Distribution?
When you source the LYT4314L through our authorized channel, you receive:
- ✓ 100% genuine Power Integrations components with full traceability
- ✓ Complete manufacturer documentation and reference designs
- ✓ Long lifecycle availability to support your product programs
- ✓ Technical support and design-in assistance
- ✓ Global shipping through authorized logistics partners
All specifications are subject to change without notice. Please refer to the manufacturer's datasheet for the most current information.
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | LYTSwitch™-4 |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Topology | Flyback, Step-Down (Buck), Step-Up (Boost) |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 99.9% |
| Frequency - Switching | 140kHz |
| Power (Watts) | 22 W |
| Fault Protection | - |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SSIP, 6 Leads, Exposed Pad, Formed Leads |
| Supplier Device Package | eSIP-7F |
LYT4314L.pdf
×
