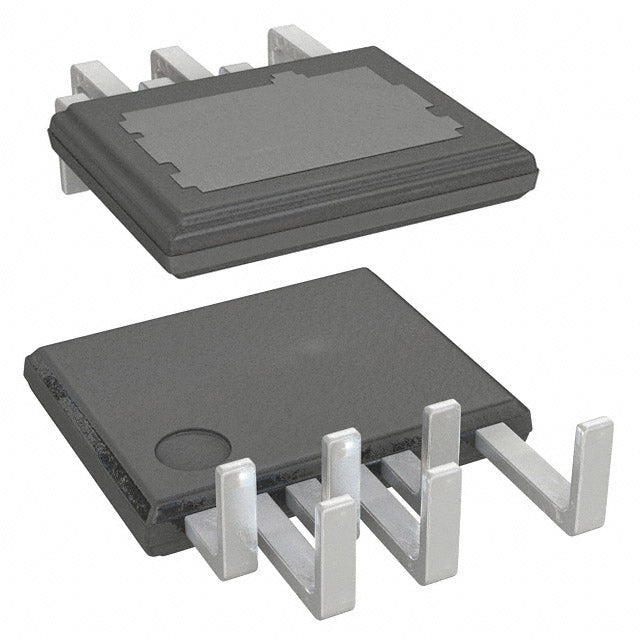

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
LYT4315L
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,892.34 AED | Dhs. 355,892.34 AED |
| 15+ | Dhs. 344,653.64 AED | Dhs. 5,169,804.60 AED |
| 25+ | Dhs. 337,161.17 AED | Dhs. 8,429,029.25 AED |
| 50+ | Dhs. 318,429.99 AED | Dhs. 15,921,499.50 AED |
| 100+ | Dhs. 280,967.64 AED | Dhs. 28,096,764.00 AED |
| N+ | Dhs. 56,193.53 AED | Price Inquiry |
Couldn't load pickup availability
LYT4315L - Power Integrations LYTSwitch-4 AC-DC Offline Switching IC
The LYT4315L is a high-performance 25W AC-DC offline switching IC from Power Integrations' LYTSwitch-4 family. Designed for isolated power supply applications, this integrated controller features an internal 725V breakdown switch and supports multiple topologies including flyback, step-down (buck), and step-up (boost) configurations.
Key Features & Benefits
- Integrated 725V Switch: High voltage capability for universal input applications
- 25W Power Output: Ideal for LED drivers, auxiliary supplies, and consumer electronics
- Multi-Topology Support: Flyback, buck, and boost configurations for design flexibility
- 140kHz Switching Frequency: Enables compact transformer design
- 99.9% Duty Cycle: Excellent efficiency and performance
- Wide Operating Temperature: -40°C to 150°C (TJ) for industrial applications
- eSIP-7F Package: Through-hole mounting with formed leads for easy assembly
Typical Applications
- LED lighting drivers and ballasts
- Auxiliary power supplies for appliances
- Consumer electronics power adapters
- Industrial control power supplies
- Smart home and IoT device power
Why Choose LYT4315L?
The LYTSwitch-4 series delivers exceptional reliability and performance for cost-sensitive applications. With integrated protection features and Power Integrations' proven technology, the LYT4315L simplifies design while ensuring long-term reliability. Available from authorized distributors with full manufacturer documentation and traceability.
Authorized Distributor: All products ship with full manufacturer documentation, authenticity guarantees, and traceability for long lifecycle support.
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | LYTSwitch™-4 |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Topology | Flyback, Step-Down (Buck), Step-Up (Boost) |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 99.9% |
| Frequency - Switching | 140kHz |
| Power (Watts) | 25 W |
| Fault Protection | - |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SSIP, 6 Leads, Exposed Pad, Formed Leads |
| Supplier Device Package | eSIP-7F |
LYT4315L.pdf
