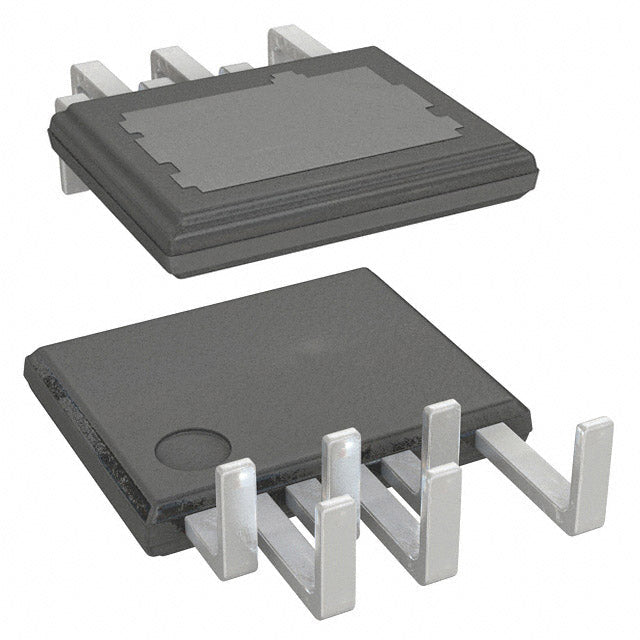

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
LYT4317L
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,892.34 AED | Dhs. 355,892.34 AED |
| 15+ | Dhs. 344,653.64 AED | Dhs. 5,169,804.60 AED |
| 25+ | Dhs. 337,161.17 AED | Dhs. 8,429,029.25 AED |
| 50+ | Dhs. 318,429.99 AED | Dhs. 15,921,499.50 AED |
| 100+ | Dhs. 280,967.64 AED | Dhs. 28,096,764.00 AED |
| N+ | Dhs. 56,193.53 AED | Price Inquiry |
Couldn't load pickup availability
LYT4317L - Power Integrations LYTSwitch-4 AC-DC Converter IC
The LYT4317L is a high-performance, isolated AC-DC converter IC from Power Integrations' LYTSwitch-4 family, designed for multi-topology offline switching applications up to 50W. This integrated solution combines a 725V power MOSFET with advanced control circuitry, delivering exceptional efficiency and reliability for industrial, telecommunications, and power supply designs.
Key Features & Benefits
- Multi-Topology Support: Flyback, Step-Down (Buck), and Step-Up (Boost) configurations for design flexibility
- High Voltage Capability: 725V breakdown voltage for universal input applications
- Efficient Switching: 140kHz switching frequency with 99.9% maximum duty cycle
- Isolated Output: Galvanic isolation for safety-critical applications
- Integrated Power Switch: Reduces external component count and simplifies design
- Wide Operating Range: -40°C to 150°C junction temperature for harsh environments
- Compact Package: eSIP-7F (7-SSIP) through-hole package with exposed pad and formed leads
Typical Applications
- Industrial power supplies and automation equipment
- Telecommunications infrastructure and networking gear
- LED lighting drivers and ballasts
- Auxiliary power supplies for motor drives
- Smart home and IoT device power modules
- Battery chargers and adapters
Why Choose LYT4317L?
The LYT4317L offers design engineers a proven, cost-effective solution for offline power conversion with full manufacturer documentation and traceability. As an authorized distributor, we guarantee 100% authentic Power Integrations components with long lifecycle availability to support your production programs and mitigate obsolescence risk.
Authorized Distributor Guarantee: All LYT4317L units ship with full manufacturer documentation, authenticity certification, and traceability. Global shipping available through authorized channels with design-in support and reference designs.
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | LYTSwitch™-4 |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Topology | Flyback, Step-Down (Buck), Step-Up (Boost) |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 99.9% |
| Frequency - Switching | 140kHz |
| Power (Watts) | 50 W |
| Fault Protection | - |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SSIP, 6 Leads, Exposed Pad, Formed Leads |
| Supplier Device Package | eSIP-7F |
LYT4317L.pdf
