Power Integrations LYT5225D-TL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.81 | $0.81 |
| 15+ | $0.78 | $11.70 |
| 25+ | $0.77 | $19.25 |
| 50+ | $0.72 | $36.00 |
| 100+ | $0.64 | $64.00 |
| N+ | $0.13 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | LYTSwitch™-5 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Topology | Flyback, Step-Down (Buck), Step-Up (Boost) |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | - |
| Frequency - Switching | 132.7kHz |
| Power (Watts) | 9 W |
| Fault Protection | - |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 14 Leads |
| Supplier Device Package | 16-SO B |
| ROHS |  |

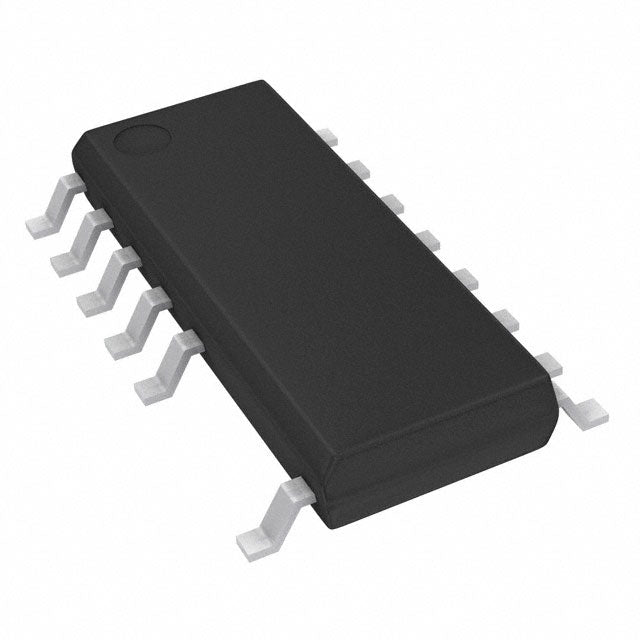

The LYT5225D-TL from Power Integrations is a multi-topology offline switcher in the LYTSwitch-5 series, supporting flyback, step-down (buck), and step-up (boost) configurations. It integrates a 725V power switch and delivers up to 9W at a 132.7kHz switching frequency. Supplied in a 16-SOIC package with 14 leads, it is rated for -40°C to 150°C junction temperatures.
- Supports flyback, buck, and boost topologies for design flexibility.
- Integrated 725V power switch reduces external component count.
- 9W output and 132.7kHz switching enable compact offline designs.
- Isolated flyback capability provides galvanic isolation when required.
- Wide -40°C to 150°C junction temperature range for reliable operation.
Multi-Topology Offline Supplies
The LYT5225D-TL supports flyback, buck, and boost topologies, giving designers flexibility to build isolated or direct-coupled offline supplies from a single platform.
LED and Lighting Drivers
With a 725V integrated switch and 9W output, this LYTSwitch-5 device suits compact offline drivers requiring robust voltage handling.
Appliance Bias Supplies
132.7kHz switching and integrated switch reduce external parts, simplifying auxiliary power in household appliances.
Wide Temperature Operation
Rated for -40°C to 150°C junction temperature, it performs reliably in demanding thermal environments.
- Q: What topologies does the LYT5225D-TL support?
- A: Flyback, step-down (buck), and step-up (boost) configurations.
- Q: Does it have an integrated switch?
- A: Yes, it integrates a power switch rated at 725V breakdown.
- Q: What output power does it deliver?
- A: Up to 9W.
- Q: What is the switching frequency?
- A: 132.7kHz.
- Q: What is the operating temperature range?
- A: -40°C to 150°C junction temperature.
