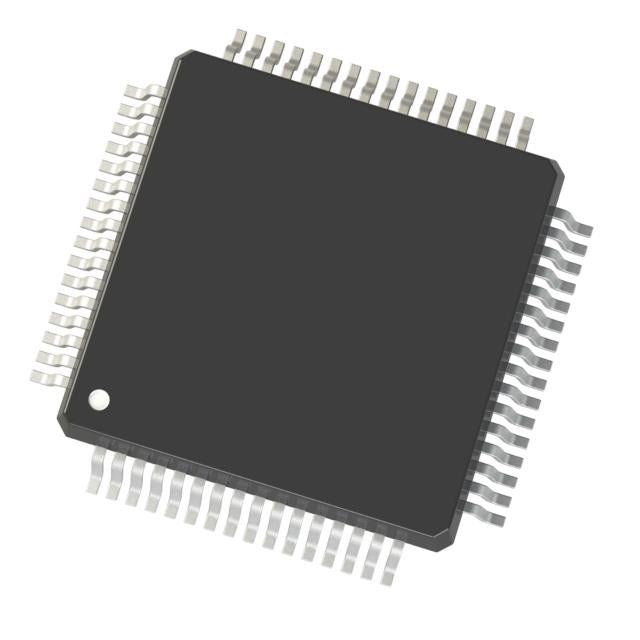

Texas Instruments M0G3106QPMRQ1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.23 | $2.23 |
| 15+ | $2.16 | $32.40 |
| 25+ | $2.12 | $53.00 |
| 50+ | $2.00 | $100.00 |
| 100+ | $1.76 | $176.00 |
| N+ | $0.35 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | MSPM0 G |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit |
| Speed | 80MHz |
| Connectivity | CANbus, DALI, I2C, IrDA, LINbus, SmartCard, SMBus, SPI, UART/USART |
| Peripherals | AES, Brown-out Detect/Reset, DMA, POR, PWM, TRNG, WDT |
| Number of I/O | 60 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 17x12b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (10x10) |
| Package / Case | 64-LQFP |
| ROHS |  |
The Texas Instruments M0G3106QPMRQ1 is a 32-bit ARM Cortex-M0+ microcontroller running at up to 80MHz. It features 64KB of flash and 32KB of SRAM, along with advanced security peripherals like AES and TRNG. Its supply voltage range of 1.62V to 3.6V and extended temperature range of -40°C to +125°C make it suitable for automotive and industrial applications. The 64-LQFP package offers a compact footprint with ample I/O. This MCU is designed for high-performance, secure embedded systems.
- High-Speed Cortex-M0+ (80MHz): Provides excellent performance for real-time control.
- Hardware Security (AES, TRNG): Enables secure communication and data protection.
- Wide Temperature Range (-40°C to 125°C): Suitable for harsh automotive and industrial environments.
- Large SRAM (32KB): Supports complex applications and data buffering.
- Automotive Qualified: Meets AEC-Q100 standards for reliability.
Automotive Body Control Modules
With AEC-Q100 qualification and 125°C operation, it can handle door, window, and lighting control in vehicles.
Secure IoT Edge Nodes
AES and TRNG provide hardware security for encrypted communication in smart home devices.
Industrial Motor Drives
High-speed PWM and 80MHz processing enable efficient field-oriented control of BLDC motors.
Battery Management Systems
Its low voltage operation and DMA are ideal for monitoring cell voltages and currents in EV battery packs.
Smart Grid Meters
With robust safety features and wide temperature range, it ensures reliable operation in outdoor utility environments.
Robotics Controllers
32KB RAM supports complex motion planning algorithms for collaborative robots.
- Q: What core does this MCU use?
- A: It uses the ARM Cortex-M0+ core, a 32-bit processor.
- Q: What is the maximum speed?
- A: It operates at up to 80MHz.
- Q: What is the supply voltage range?
- A: It ranges from 1.62V to 3.6V.
- Q: Does it have security features?
- A: Yes, it includes AES, TRNG, and secure boot capabilities.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to +125°C, suitable for automotive.
