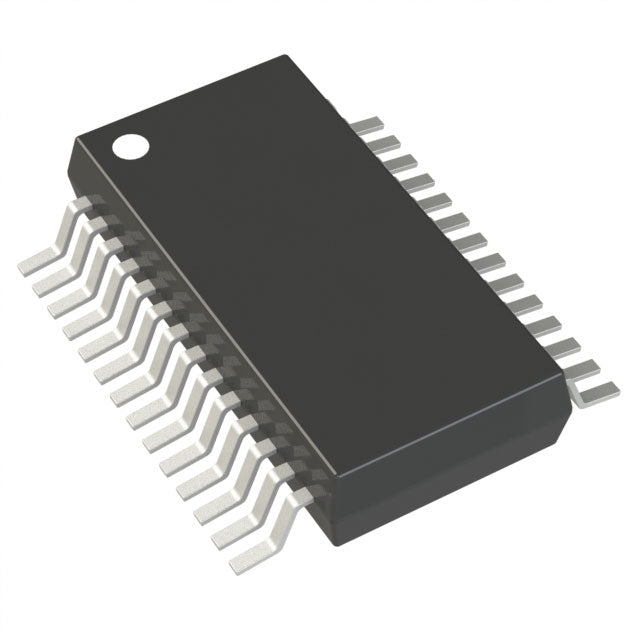

Texas Instruments M0L1306QDGS28RQ1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.50 | $1.50 |
| 15+ | $1.45 | $21.75 |
| 25+ | $1.42 | $35.50 |
| 50+ | $1.34 | $67.00 |
| 100+ | $1.19 | $119.00 |
| N+ | $0.24 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | MSPM0 L |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit |
| Speed | 32MHz |
| Connectivity | DALI, I2C, IrDA, LINbus, SmartCard, SMBus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, TRNG, WDT |
| Number of I/O | 24 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 10x12b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-VSSOP |
| Package / Case | 28-TFSOP (0.118", 3.00mm Width) |
| ROHS |  |
The Texas Instruments M0L1306QDGS28RQ1 is a high-performance, ultra-low-power microcontroller built on the ARM Cortex-M0+ core. Operating from 1.62V to 3.6V and running at 32MHz, it delivers efficient processing for a wide range of embedded applications. With 64KB of flash and 4KB of RAM, it provides ample memory for complex firmware. The device integrates advanced peripherals including DMA, PWM, and a TRNG, making it suitable for secure, real-time control. Its 28-pin TFSOP package and extended temperature range ensure reliable operation in harsh environments.
- Ultra-Low Power Operation: 1.62V minimum supply reduces energy consumption, extending battery life in portable devices.
- Enhanced Security: Integrated TRNG provides true random numbers for cryptographic operations, protecting data.
- High-Speed Processing: 32MHz Cortex-M0+ core with DMA offloads CPU, improving system throughput.
- Robust Reliability: Brown-out reset and watchdog timer ensure stable operation in industrial and automotive settings.
- Compact Footprint: 28-TFSOP package saves PCB space, ideal for space-constrained designs.
Battery-Powered IoT Sensors
With a 1.62V minimum supply and low-power modes, this MCU extends battery life in wireless sensor nodes.
Portable Medical Devices
The TRNG enables secure data encryption for patient monitoring devices, while the wide temperature range (-40°C to 125°C) suits clinical environments.
Industrial Control Systems
DMA and PWM peripherals allow precise motor control and data logging in factory automation.
Smart Home Hubs
The Cortex-M0+ core with 64KB flash handles Zigbee or Thread protocol stacks for smart lighting and thermostats.
Wearable Fitness Trackers
Low voltage and small TFSOP package enable compact, energy-efficient designs for step counters and heart-rate monitors.
Automotive Body Electronics
Qualified for AEC-Q100 (Q1 suffix), it supports window lift and seat control modules with robust brown-out detection.
- Q: What is the operating voltage range of the M0L1306QDGS28RQ1?
- A: It operates from 1.62V to 3.6V, ideal for low-power battery applications.
- Q: What core does this MCU use?
- A: It uses the ARM Cortex-M0+ 32-bit core running at up to 32MHz.
- Q: How much flash and RAM does it have?
- A: It has 64KB flash and 4KB RAM.
- Q: What package is available?
- A: It comes in a 28-pin TFSOP package (3.00mm width).
- Q: Does it include a TRNG?
- A: Yes, it features a True Random Number Generator for security.
