M25P10-AVMP6T TR

M25P10-AVMP6T TR - High-Performance 1Mbit SPI NOR Flash Memory

The M25P10-AVMP6T TR from Micron Technology is a reliable 1Mbit SPI NOR Flash memory solution designed for embedded systems, industrial automation, and mission-critical applications requiring non-volatile data storage. This high-performance memory IC features a 50MHz clock frequency and operates across a wide voltage range of 2.3V to 3.6V, making it ideal for battery-powered and low-power designs.

Key Features & Benefits

• 1Mbit (128K x 8) Memory Capacity: Provides ample storage for firmware, configuration data, and system parameters
• SPI Serial Interface: Simplifies PCB design with minimal pin count while maintaining high-speed data transfer
• 50MHz Clock Frequency: Enables fast read operations for time-sensitive applications
• Wide Operating Temperature Range: -40°C to 85°C ensures reliable performance in harsh industrial environments
• Low Power Consumption: 2.3V to 3.6V supply voltage optimizes energy efficiency

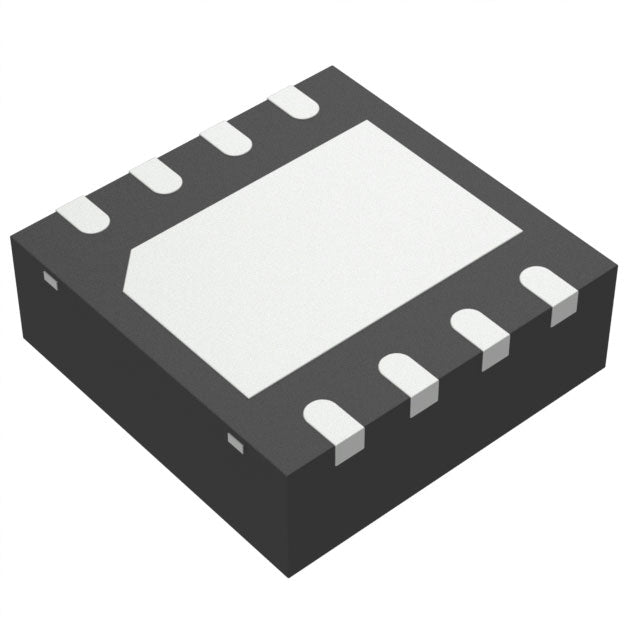

• Compact 8-VFQFPN Package: Space-saving 6x5mm footprint with exposed pad for enhanced thermal performance
• Industry-Standard SPI Protocol: Compatible with most microcontrollers and processors
• High Reliability: Designed for industrial-grade applications with extended lifecycle support

Applications & Use Cases

This NOR Flash memory is perfectly suited for:

• Industrial Control Systems: Store critical firmware and configuration parameters for PLCs, HMIs, and automation controllers
• Automotive Electronics: Reliable data storage for ECUs, dashboard systems, and infotainment platforms
• Medical Devices: Non-volatile storage for patient data, device settings, and diagnostic information
• Telecommunications Infrastructure: Firmware storage for routers, switches, and base stations
• Consumer Electronics: Boot code and configuration storage for smart home devices and IoT applications
• Embedded Systems: Code execution and data logging in resource-constrained environments

Performance Advantages

The M25P10-AVMP6T TR delivers exceptional performance characteristics that make it stand out in the NOR Flash memory market:

• Fast Read Performance: 50MHz clock enables rapid data access for boot-critical applications
• Efficient Write Operations: Page programming in just 5ms and word programming in 15ms
• Extended Temperature Range: Industrial-grade -40°C to 85°C operation ensures reliability in extreme conditions
• Low Standby Current: Optimized for battery-powered and energy-conscious designs
• Simple Integration: Standard SPI interface reduces development time and complexity

Design Considerations

When integrating the M25P10-AVMP6T TR into your design, consider the following:

• Ensure proper decoupling capacitors near the VCC pin for stable operation
• The exposed pad should be connected to ground for optimal thermal performance
• SPI bus speed can be adjusted based on system requirements up to 50MHz
• Compatible with 3.3V and lower voltage microcontroller systems
• Supports standard SPI modes 0 and 3

Quality & Reliability

As a Micron Technology product, the M25P10-AVMP6T TR meets stringent quality standards and is manufactured using advanced semiconductor processes. The device offers:

• 100,000 program/erase cycles minimum endurance
• 20-year data retention at 85°C
• ESD protection on all pins
• RoHS compliant and halogen-free

Why Choose HQICKEY for Your Memory Solutions?

At HQICKEY, we specialize in providing authentic, high-quality semiconductor components with comprehensive technical support. Our extensive Memory collection includes EEPROM, Flash, DRAM, and SRAM solutions ranging from 64b to 6Tb capacity, supporting I2C, SPI, and Parallel interfaces for aerospace, automotive, and industrial applications.

We offer lifecycle support, engineering-focused content, and worldwide distribution to help you make informed design decisions. For the latest industry insights, technical articles, and product updates, visit our NEWS blog.

Order the M25P10-AVMP6T TR today and benefit from our commitment to authentic sourcing, competitive pricing, expert technical assistance, and fast global shipping.
