Microchip Technology M2S005S-1VFG400
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 95.60 | Dhs. 95.60 |
| 15+ | Dhs. 92.57 | Dhs. 1,388.55 |
| 25+ | Dhs. 90.56 | Dhs. 2,264.00 |
| 50+ | Dhs. 85.53 | Dhs. 4,276.50 |
| 100+ | Dhs. 75.47 | Dhs. 7,547.00 |
| N+ | Dhs. 15.09 | Price Inquiry |
Request Quote / Inquiry
Microchip M2S005S-1VFG400 SmartFusion®2 SoC - ARM Cortex-M3 with Integrated FPGA
The M2S005S-1VFG400 from Microchip Technology is a high-performance SmartFusion®2 System-on-Chip (SoC) that combines an ARM® Cortex®-M3 microcontroller with FPGA fabric, delivering exceptional flexibility for embedded applications requiring both processing power and programmable logic.
Key Features & Benefits
- Dual Architecture: ARM Cortex-M3 MCU core integrated with 5K logic module FPGA for maximum design flexibility
- High Performance: 166MHz operating frequency with 128KB Flash and 64KB RAM
- Rich Connectivity: CANbus, Ethernet, I²C, SPI, UART/USART, and USB interfaces for versatile system integration
- DDR Memory Support: Enhanced memory bandwidth for data-intensive applications
- Industrial Temperature Range: Operates reliably from 0°C to 85°C (TJ)

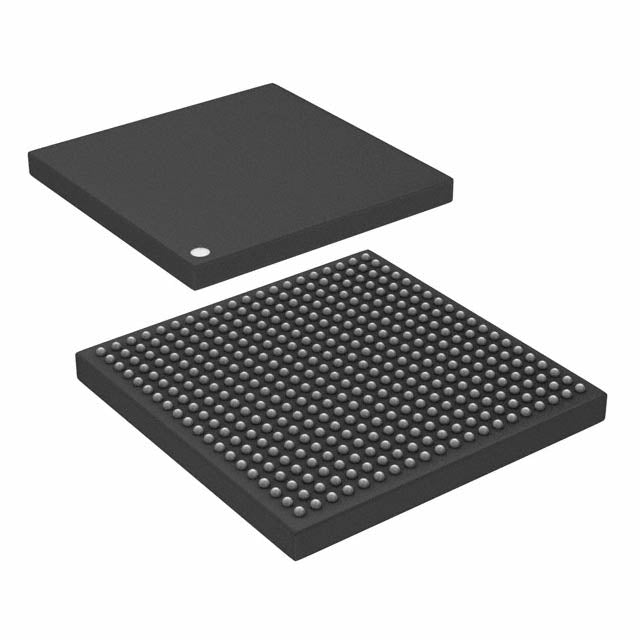

- Compact Package: 400-pin VFBGA (17x17mm) for space-constrained designs
- RoHS Compliant: Meets environmental standards for global deployment
Ideal Applications
Perfect for industrial automation, motor control, communications infrastructure, medical devices, and aerospace systems requiring secure, deterministic processing with customizable hardware acceleration.
Why Choose This SmartFusion®2 SoC?
The M2S005S-1VFG400 delivers unmatched integration by combining a proven ARM Cortex-M3 processor with customizable FPGA logic, eliminating the need for separate MCU and FPGA components. This reduces board space, power consumption, and system complexity while enhancing security through hardware-based protection mechanisms.
Full traceability, datasheets, and technical support available. Contact us for volume pricing and design-in assistance.
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SmartFusion®2 |
| Packaging | Tray | |
| Part Status | Active |
| Architecture | MCU, FPGA |
| Core Processor | ARM® Cortex®-M3 |
| Flash Size | 128KB |
| RAM Size | 64KB |
| Peripherals | DDR |
| Connectivity | CANbus, Ethernet, I2C, SPI, UART/USART, USB |
| Speed | 166MHz |
| Primary Attributes | FPGA - 5K Logic Modules |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Grade | - |
| Qualification | - |
| Package / Case | 400-LFBGA |
| Supplier Device Package | 400-VFBGA (17x17) |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
